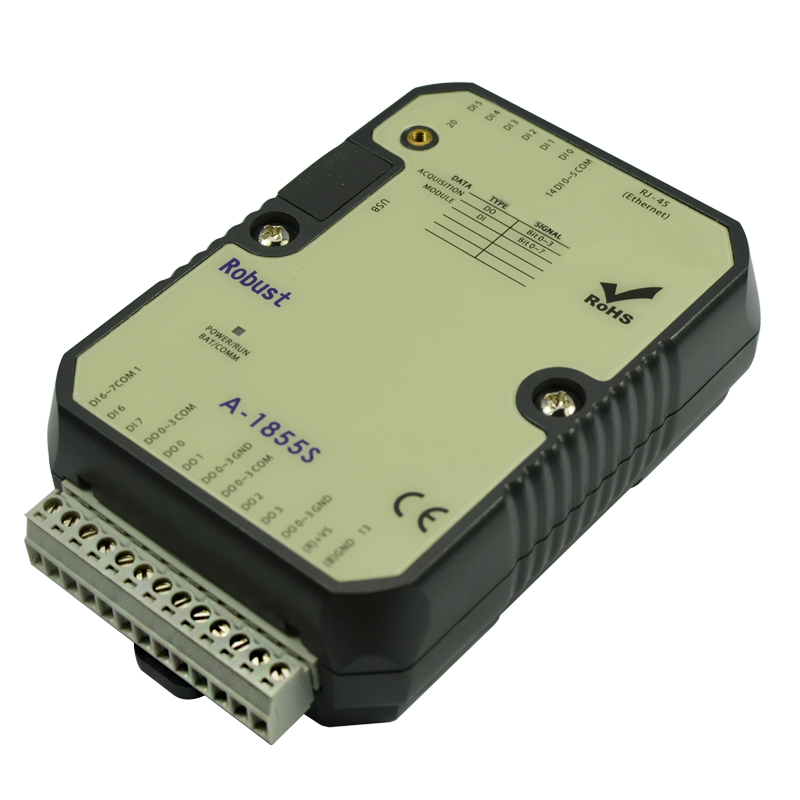

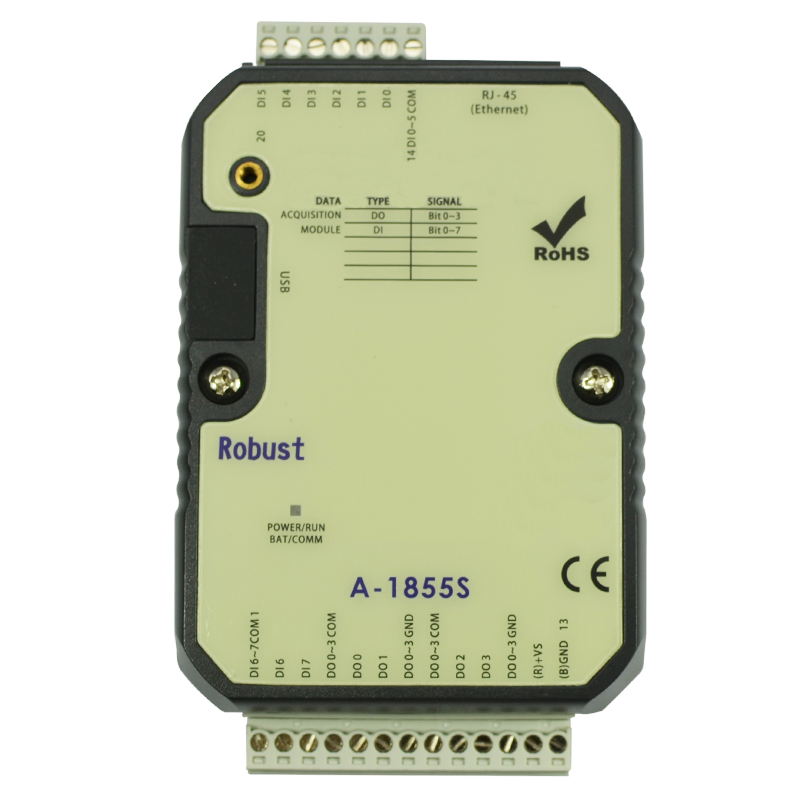

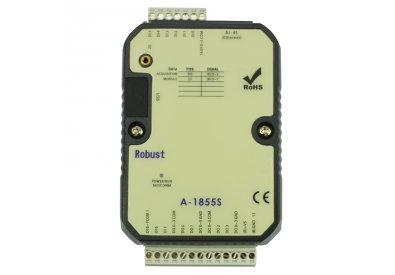

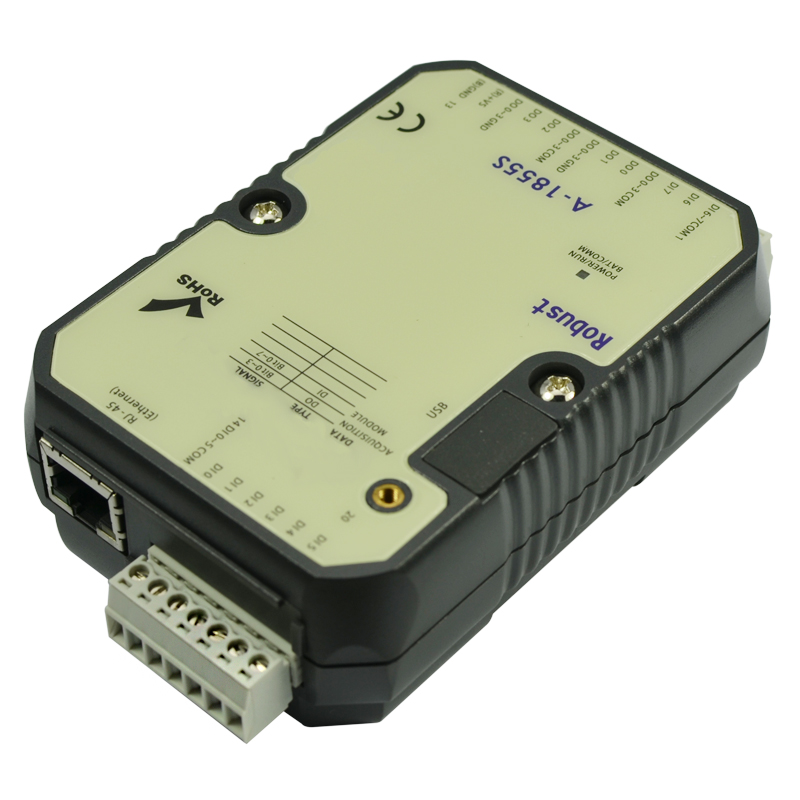

A-1855S
.jpg)
ATC remote Ethernet I/O Modbus module, support TCP/IP protocol, through the Ethernet interface with other Modbus TCP/IP protocol or PC communication equipment or remote control. Ethernet also supports 8 independent TCP communication connection, can use mobile phone, computer network remote monitoring page, also can be connected to the A-3290 Wi-Fi bidirectional remote controller directly control the output, no the need for any controller.
※ Burn-out Detection
※ Ethetnet Interface + USB Interface
※ Supports 8 Independent Sockets Simultaneously
※ Remote monitoring and control with mobile devices
※ Built-in Step Motor Driver, Connect Directly
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Support MODBUS TCP/IP
※ Flexible User-defined Modbus address
※ Support LAN 10/100 Mbps Communication Rate
※ Free monitor PC software "Utility"
.jpg)
|
Type |
A-1855S |
|
|
Operation Voltage |
10 ~ 30VDC/24VAC |
|
|
Inputs |
8 * Isolation DI |
Status Low：<1VDC |
|
Status High：>5~30VDC |
||
|
Outputs |
4, Source |
|
|
Continuous Current |
8 - 60VDC（1.75A） |
|
|
Ethernet |
10/100Mbps |
|
|
Isolation |
YES（5000VDC） |
|
|
Input Operating Frequency |
10Hz |
|
|
Output Operating Frequency |
10Hz |
|
|
Operation Temperature |
-20 to +75℃ |
|
|
Degree Of Protection |
IP20 |
|
|
Installation |
35 mm DIN rail / Flush mounting |
|
|
Dimension（W×H×D） |
76.4*118.2*38.5 mm |
|
|
Analog Inputs |
- |
|
|
Analog Input Type |
- |
|
|
Analog Outputs |
- |
|
|
Analog Output Type |
- |
|
|
Input Impedance |
- |
|
|
Analog Input / Output Accuracy |
- |
|
|
Interface |
Ethernet + USB |
|
|
Channel Independent Configuration |
Yes |
|
|
Sampling Rate |
10 sample/second（Total） |
|
|
CMR @ 50/60 Hz |
120 dB |
|
|
Span Drift |
±50 ppm/℃ |
|
|
Zero Drift |
±18 μV/℃ |
|
.jpg)
Application Diagram:
Unit: mm
