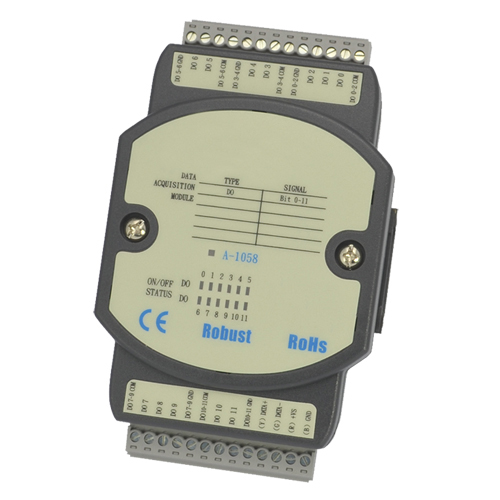

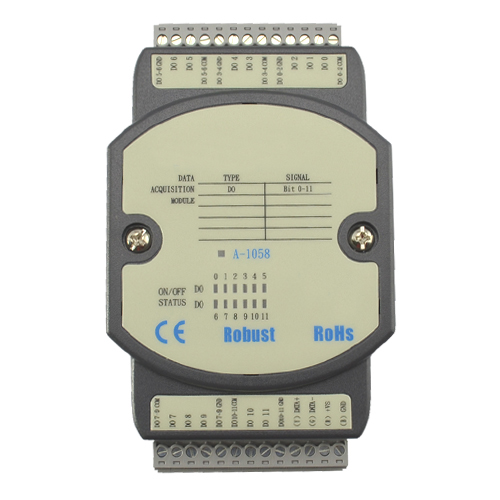

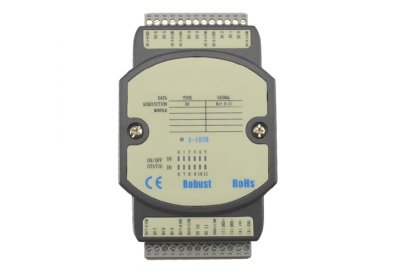

A-1058
A Series Remote I/O Modules
Model:A-1058
Product Features
- RS-485 Interface
- Supports Modbus RTU / ASCII
- LED Indicators
- Isolation voltage: 5000 V DC
- Wide operation temperature : -20 ~ +75 °C
- Dual watchdog timer
- Surge , EFT and ESD protection
- Free PC software “ Utility”
|
Technical Specifications |
||||
|
Inputs |
None |
|||
|
Outputs |
12DO（Sink Output） |
|||
|
Interface Type |
RS-485 |
|||
|
Support Protocols |
ModBus RTU / ModBus ASCII |
|||
|
Data Rate |
1200bps ~ 115200bps |
|||
|
Data Bit |
8 bits |
|||
|
Parity |
Odd, Even, None |
|||
|
Stop Bits |
1,2 bits |
|||
|
Isolation Voltage |
5000 VDC |
|||
|
Intput R |
||||
|
Output Rating(Max) |
4VDC/200mA |
|||
| Output Frequency | 100Hz | |||
|
Software |
||||
|
Configure Options |
Utility |
|||
|
OS support |
Windows XP/2000/2003/Vista/7 |
|||
|
LED Indicators |
POWER/RUN BAT/COMM |
Orange/Orange/Flash |
||
|
Input/Output |
Red |
|||
|
Power Supply |
10~30VDC |
|||
|
Power Consumption |
Nearly 24VDC 0.96W |
|||
|
Physical Characteristics |
||||
|
Installation |
DIN-Rail Mounting |
|||
|
Housing |
Plastic ABS |
|||
|
Weight |
0.2Kg |
|||
|
Dimensions |
118 × 76 × 40.7 mm |
|||
|
Operating Temperature |
-20 ~ 75°C |
|||
|
Storage Temperature |
-40 ~ 85°C |
|||
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
|||
|
Standards and Certifications |
||||
|
RoHS, CE |
||||
Application Diagram:
