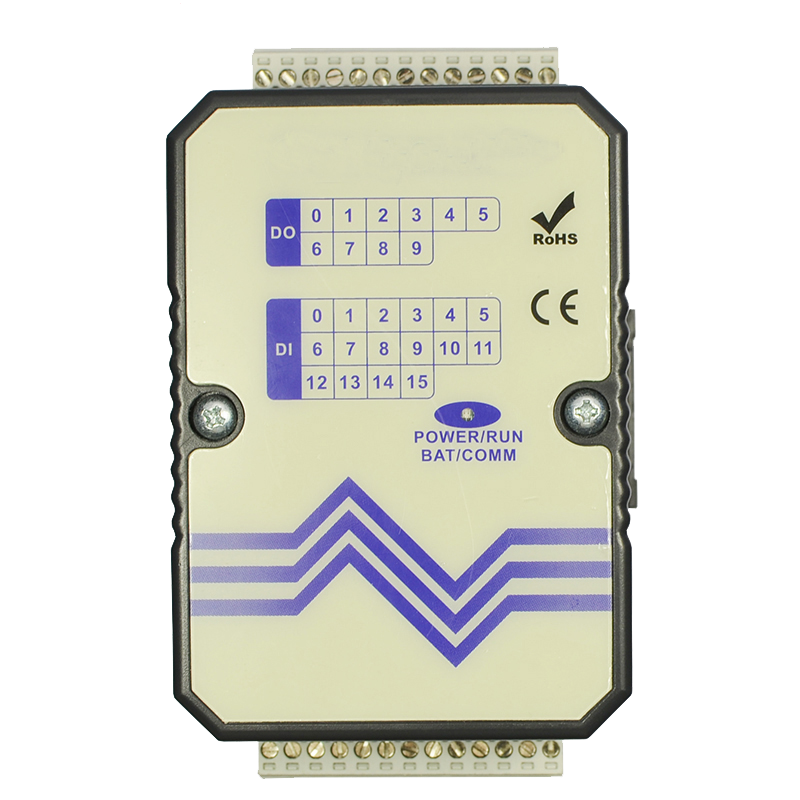

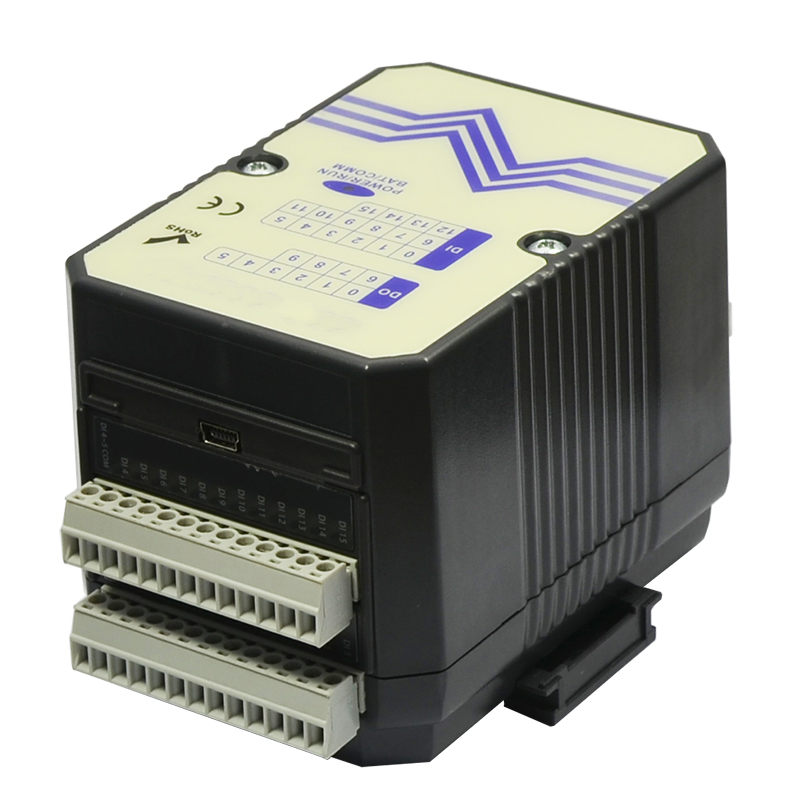

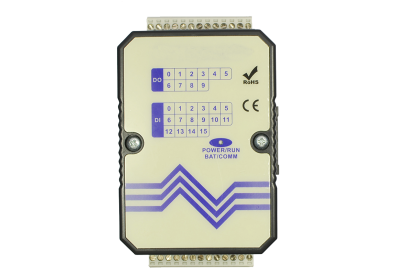

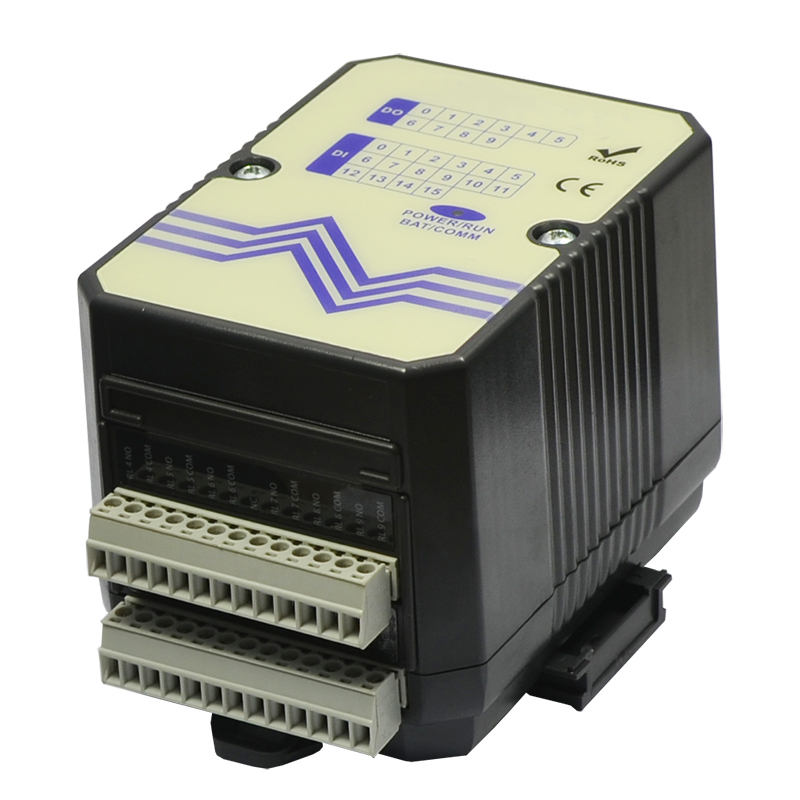

A-5191
.jpg)
※ Creation of control programs in Function Block Diagram (FBD)or Ladder Diagram (LAD)
※ 4-Axis Synchronous Motion, 100 KHz PWM (Total 400KHz)
※ Able To Edit The Parameter Among The Controller Operation
※ Multiple AUTO-PI Synchronous Function
※ Multi-Lingual Display Menu
※ Enhance Password & Safety Function
※ Text Display Can Be Pre-Programmed in Two Languages
※ Built-in Standard High Frequency Counter (250KHz per Input, Total 1000KHz)
※ Built-in Standard Real Time Clock (RTC)
※ PC Program Can be Used For All A-61/52/62 Series
※ ATP2 Text Panel Can Plug & Play Directly
※ Built-in Standard RS-485 Port, Connect More Than 10000 IOs Via Remote IO Module
※ Memory Card Which Has Copy & Password Protection
※ Connect Encoder & Multi-Sensors Directly
※ Built-in Step Motor Driver, Connect Directly
※ Built-in Datalog Function, MicroSD Plug-in
※ Display Text Display Diversity Patterns, Scrolling Text, Bar Charts, Indicators ....
※ 104 FBD Integrated Functions, 97 LD Integrated Functions
※ Astronomical Clock Function
※ ATP2 Text Panel Built-in Function Key
※ Digital Oscilloscope Function, Real-Time Monitoring
※ High-Level Math Functions
※ Communication Protocol MODBUS RTU/ASCII & Multi Format
※ Block Name Define, Program Comment
※ Communication Baud Rate 921600 bps
※ Custom Truth Table, Without Logical Analysis
※ Multi Communication Parameter Function
※ Quick Calculation Of Nonlinear Equations
※ Random Generator Hardware
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Independent Communication Port which can communicate with 255 units MODBUS devices synchronized
※ Free PC software“Edit”+“Utility”
※ Built-in Current(0/4~20mA)/Voltage(0~10V)/PT-100 Input + Current Output(0/4 ~ 20mA)
.jpg)
|
Type |
A-5191 |
|
|
Operation Voltage |
10 ~ 30VDC/24VAC |
|
|
Inputs |
16 * DI(Isolation) |
Status Low：<2VDC |
|
Status High：>4~30VDC |
||
|
4 * AI |
0 ~ 10 VDC（10 - bit） |
|
|
Outputs |
10 * Relay（Isolation） |
|
|
Continuous Current |
Relay |
With Resistive Load：5A |
|
With Inductive Load：2A |
||
|
Transistor |
10-60VDC / 1.75A（OCP/OTP/UVLO） |
|
|
Isolation |
YES（5000VDC） |
|
|
Input Operating Frequency |
250KHz (DI0-DI3) |
|
|
Output Operating Frequency |
Relay |
30Hz |
|
Transistor |
100KHz |
|
|
RTC/ Hold During Power Off |
YES |
|
|
Interface |
USB * 1 & RS-485 * 2 & RS-232 * 1 |
|
|
Communication Baud Rate |
1200 ~ 921600bps |
|
|
Base Controller IOs |
30 IOs |
|
|
Operation Temperature |
-20 to +75℃ |
|
|
Degree Of Protection |
IP20 |
|
|
Installation |
35 mm DIN rail / Flush mounting |
|
|

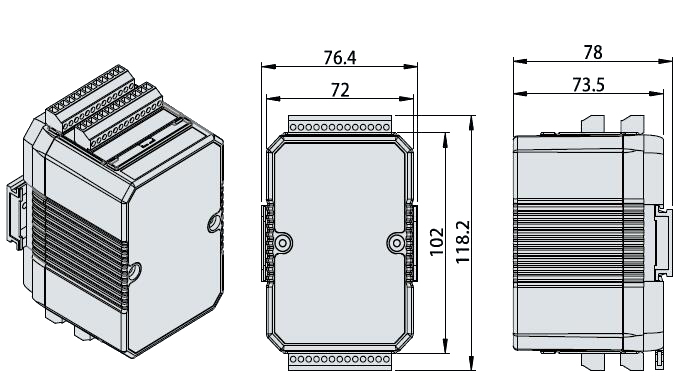

Dimension（W×H×D） |
76.4-118.2*78 mm |
|
.jpg)
Application Diagram:
