A-1012

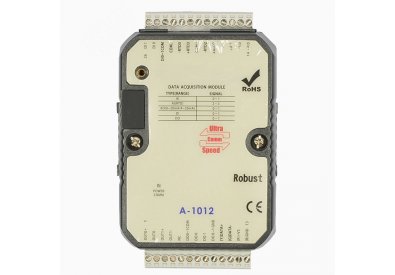

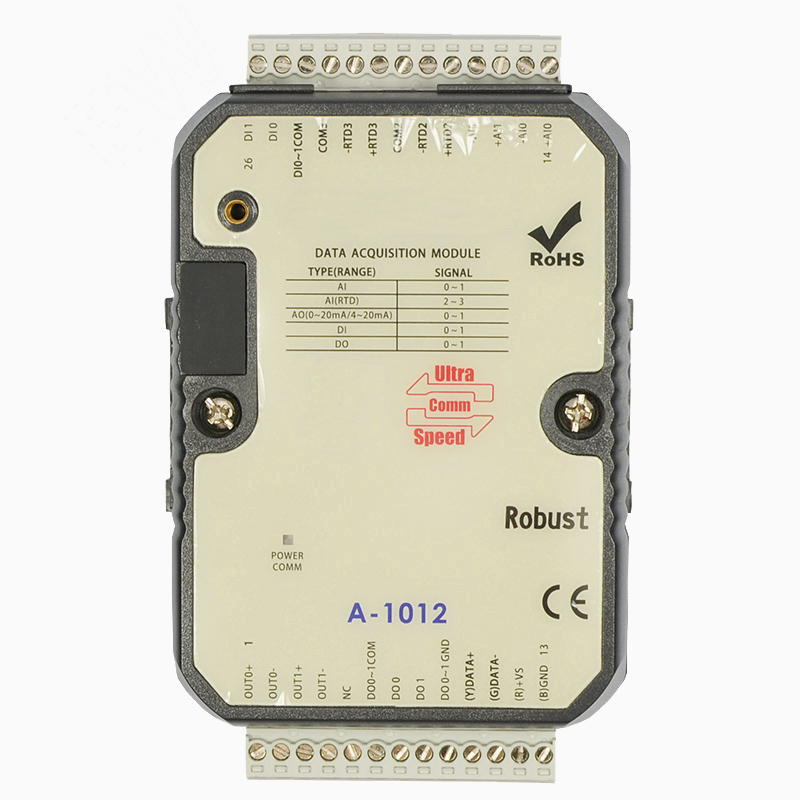

.jpg)
ATC remote RS-485 I/O module, support Modbus RTU/ASCII protocol, can be applied to the full range of ATC controller. And it also can communicate with other devices that support the Modbus RTU/ASCII protocol, host computer communication or remote command control. It can make the series of module work in Bus network and the I/O points can flexible expansion.
※ Analog Input 16-bit Resolution
※ Analog Output 12-bit Resolution
※ Support Analog Input/Output 0/4 ~20mA or 0~10V
※ Support PT-100 or PT-1000 (2 or 3-wired)
※ Burn-out Detection
※ RS-485 Interface + USB Interface
※ Hi-Speed RS-485 Interface (Max 921600bps)
※ Supports Modbus RTU / ASCII
※ LED indicator
※ Operation temperature -20~+75°C
※ Isolation voltage: 5000 V DC
※ Surge , EFT and ESD protection
※ Dual watchdog timer
※ Low power indicator
※ Operation Range: Up to 1200 Meters
※ Free PC software“Utility＂

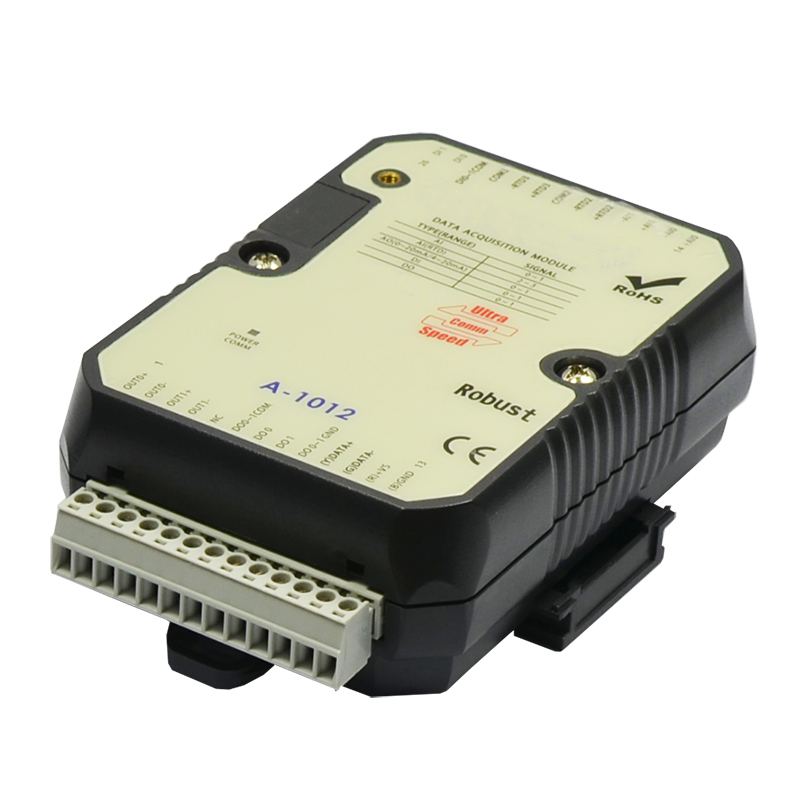

.jpg)
|
Technical Specifications（A-1012） |
||
|
Inputs |
2*Isolation DI status low:<1VDC status high:>5~30VDC 4AO(16-bit 2*0/4-20mA 2*PT-100/1000 -200~+600℃) |
|
|
Outputs |
2*DO(Source Transistor 10-35VDC 1A) 2*AO（12-bit 0/4-20mA） |
|
|
Interface Type |
RS-485 + USB |
|
|
Support Protocols |
ModBus RTU / ModBus ASCII |
|
|
Data Rate |
2400~921600bps |
|
|
Data Bit |
8 bits |
|
|
Parity |
Odd, Even, None |
|
|
Stop Bits |
1,2 bits |
|
|
Input Operating Frequency |
10HZ |
|
|
Output Operating Frequency |
Transistor:10HZ |
|
|
Degree Of Protection |
IP20 |
|
|
Input Impedance |
Current:100Ω RTD :10 MΩ |
|
|
Input Accuracy |
±0.1% |
|
|
Sampling Rate |
10 sample/second (total) |
|
|
Isolation Voltage |
5000 VDC |
|
|
Software |
||
|
Configure Options |
Utility |
|
|
OS support |
Windows XP/2000/2003/Vista/7/8/8.1/10 |
|
|
LED Indicators |
POWER/RUN BAT/COMM |
Orange/Orange/Flash |
|
Input/Output |
Red |
|
|
Power Supply |
10~30VDC |
|
|
Power Consumption |
Nearly 24VDC 1.66W |
|
|
Physical Characteristics |
||
|
Installation |
DIN-Rail Mounting |
|
|
Housing |
Plastic ABS |
|
|
Weight |
0.2Kg |
|
|
Dimensions |
118 × 76 × 40.7 mm |
|
|
Operating Temperature |
-20 ~ 75°C |
|
|
Storage Temperature |
-40 ~ 85°C |
|
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
|
|
Standards and Certifications |
RoHS, CE | |

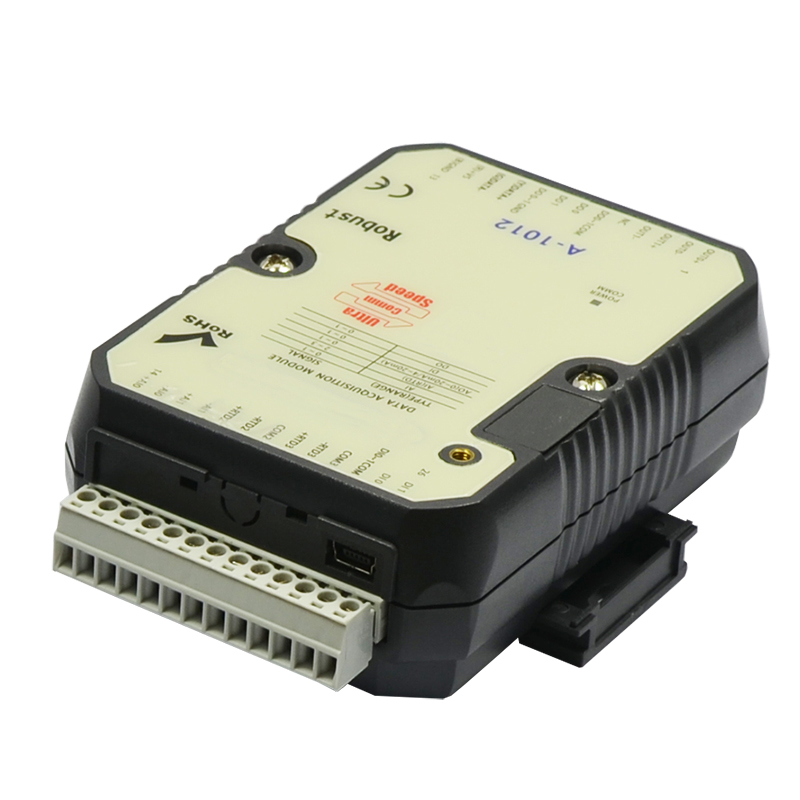

.jpg)
