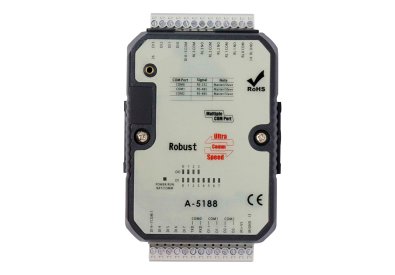

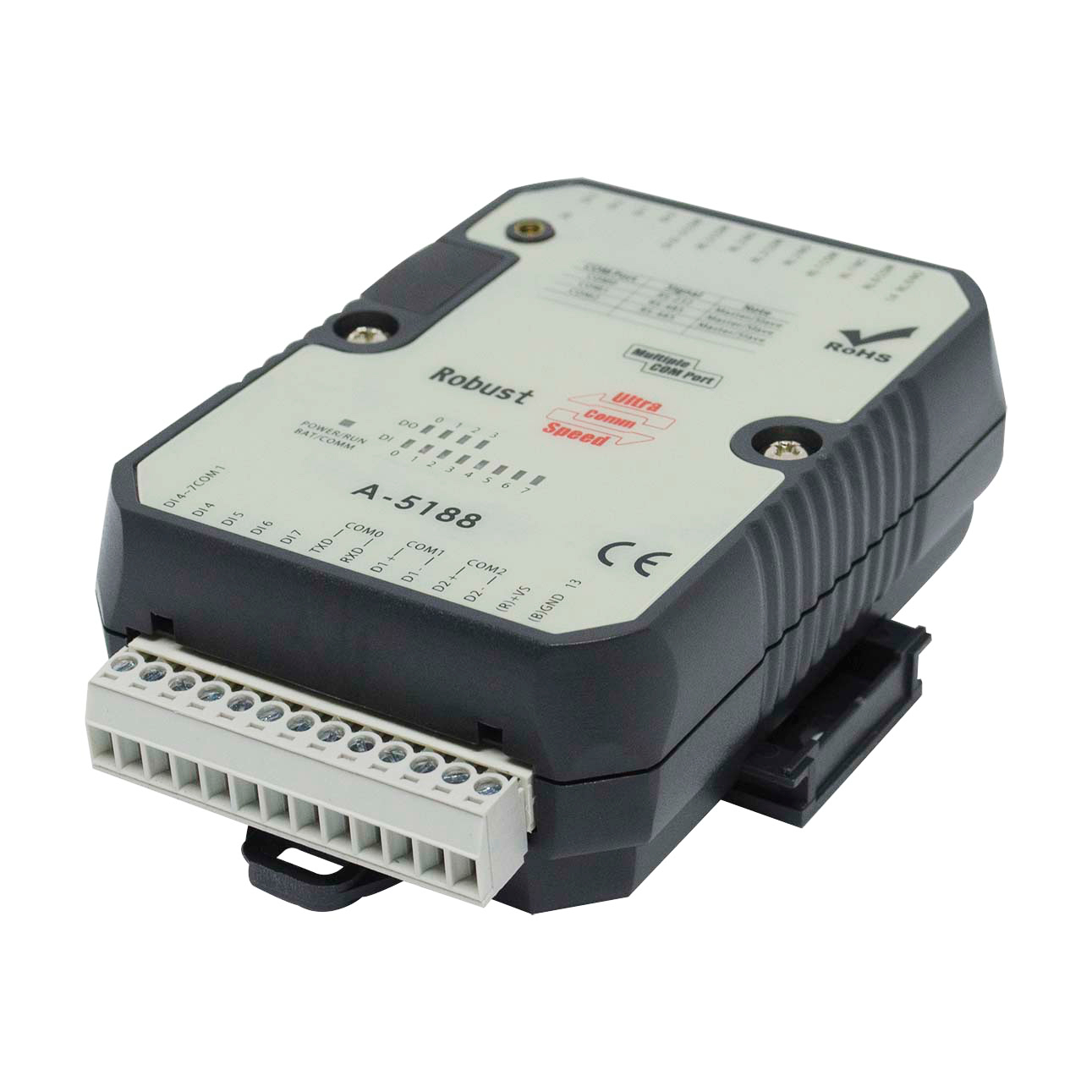

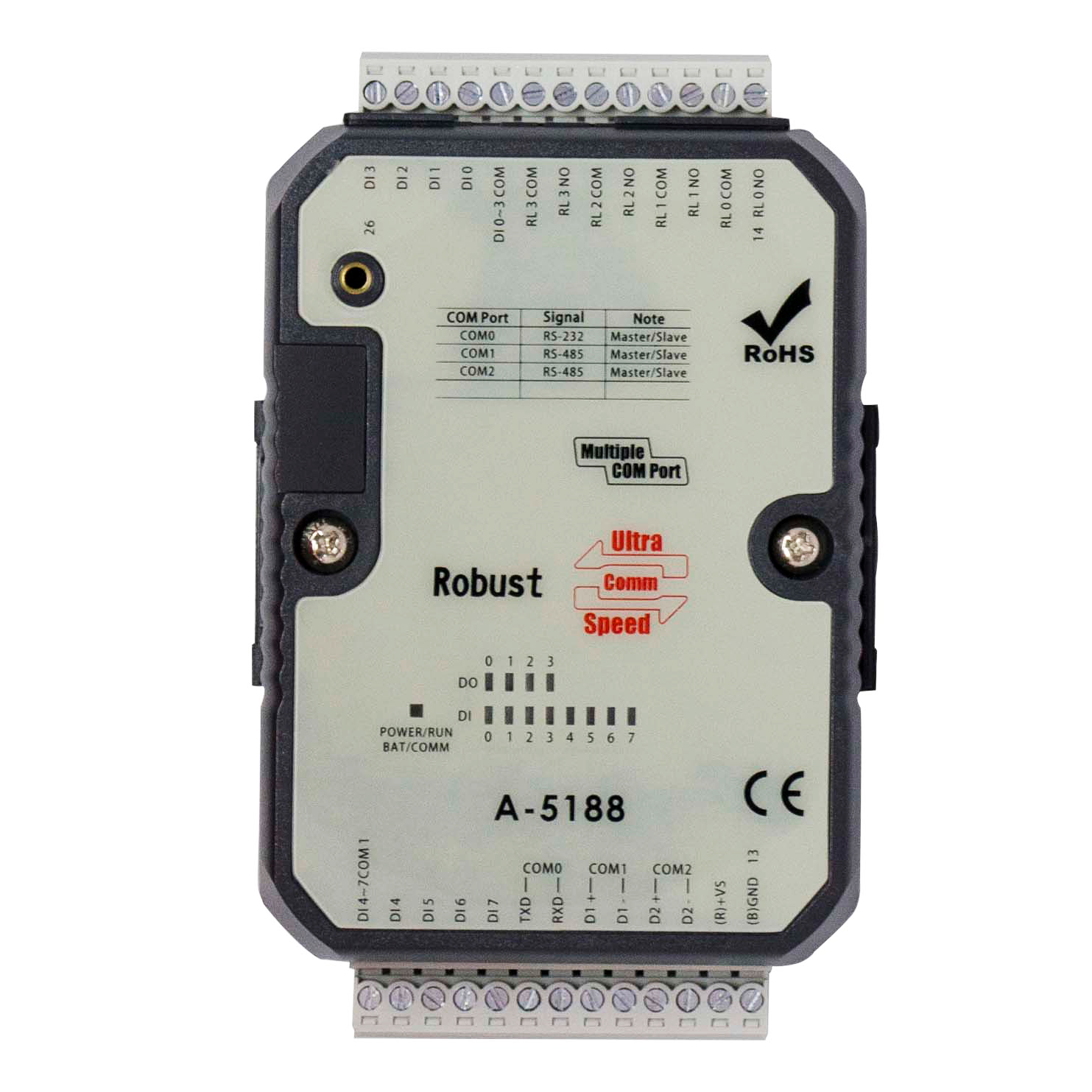

A-5188
Product overview
ATC launched the product performance, stability, are leading the global industry with the world, has created numerous records of [the world] first, the follow-up will be performed with innovative concept to serve all sorts of different areas of application.
Product features
1, the function block (FBD) trapezoidal round editing system (LD)
2, 4 axis control at the same time, the transverse pulse output up to 100 KHZ bandwidth 400 KHZ (total)
3, password, and security features to strengthen
4, built-in timer high-speed measurement (250 KHZ, total bandwidth 100 KHZ)
5, built-in integration clock/maintain power
6, communication speed to 921600 BPS
7, high order mathematical functions
8, communication control, time and other fine function
9 "Edit + Utility", free software
|
Type |
A-5188 |
|
Operation Voltage |
10-30 VDC/24VAC |
|
Inputs |
8DI(Isolation) (low:<2VDC/high:>4VDC) |
|
Outputs |
4*Isolation(Relay) |
|
Continuous Current |
Relay:5A (with resistive load), 2 A (with inductive load) / Transistor:1.75A(OCP/OTP/UVLO) |
|
Output Operating Frequency |
Relay:30HZ / Transistor:100KHZ |
|
Input Operating Frequency |
250KHZ（Total 1000KHz） |
|
RTC/ Hold During Powerf |
Yes |
|
Operation Temperatur |
-20℃ - +75℃ |
|
Communication Port |
USB*1 & RS-485*2&RS-232*1 |
|
Communication Baud Rat |
1200-921600bps |
|
Degree Of Protectio |
IP20 |
|
Base Controller IO |
12 IOs |
|
Installatio |
35 mm DIN rail or Flush mountin |
|
Dimension (W x H x D mm) |
76.4*118.2*40.7mm |
|
Communication Cabl |
CAB-MINIUSB60 or RS-485 or RS-232 |
Application Diagram:
