A-1036+

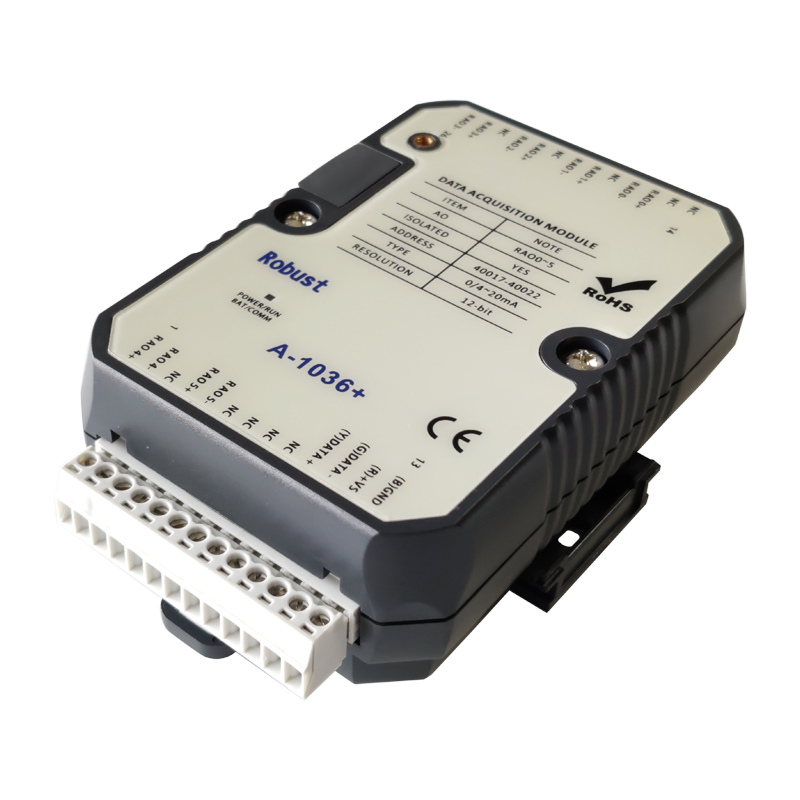

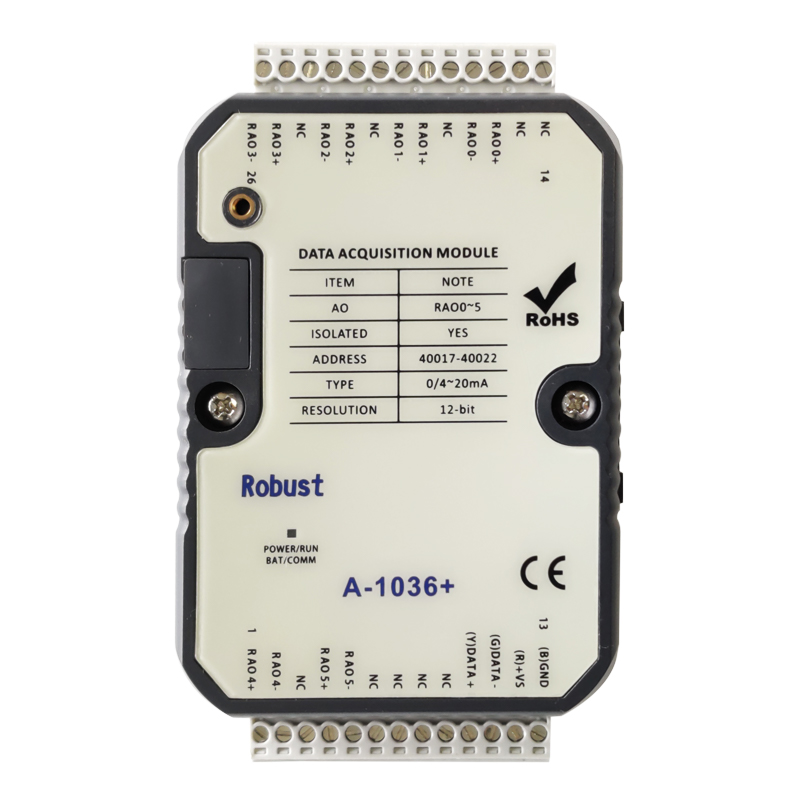

6AO(4~20mA) Analog I/O Module(Isolation)

Part number: A-1036+

In Stock : Available

Datasheet

User's Manual

Driver & software

How to order

See Larger Image

ATC remote RS-485 I/O module, support Modbus RTU/ASCII protocol, can be applied to the full range of ATC controller. And it also can communicate with other devices that support the Modbus RTU/ASCII protocol, host computer communication or remote command control. It can make the series of module work in Bus network and the I/O points can flexible expansion.

※ Analog Output Channels : 6

※ 12-bit resolution

※ Software configurable for 4~20mA or 0~20mA output in individual channels

※ Burn-out Detection

※ Supports Modbus RTU / ASCII

※ LED Indicator

※ Surge , EFT And ESD Protection

※ Dual Watchdog Timer

※ Low Power Indicator

※ Operation Range: Up To 1200 Meters

※ Free PC Software ”ATC Utility”

※ Isolation RS-485 Interface

Display
LED Indicator	Power
Power Supply
Power Requirement	10-30 VDC
Analog Output
Channels	6
Current Output	0-20 mA, 4-20 mA
Current Load	Max. 500Ω
Resolution	12-bit
Accuracy	±1% of FSR
Communication
Interface	Isolation RS-485
Data Bit	8 bits
Parity	Odd, Even, None
Stop Bits	1,2 bits
Communication Protocol	Modbus RTU / Modbus ASCII
Communication Speed	Serial: From 1,200 to 115.2k
Comm. Distance	Serial: 1.2km
Data Flow Control	Yes
General
Watchdog Timer	System & Communication
Connector	2 × plug-in terminal block (#14~28 AWG)
Temperature(Operating)	-10 ~ +70℃(+14 ~ +158°F)
Humidity	5~95 %RH
Temperature(Storage)	-25 ~ +85℃(-13 ~+185°F)
Degree Of Protection	IP20
Installation	35 mm DIN rail / Flush mounting
Dimension（W×H×D）	76.4118.240.7 mm

Application Diagram:
