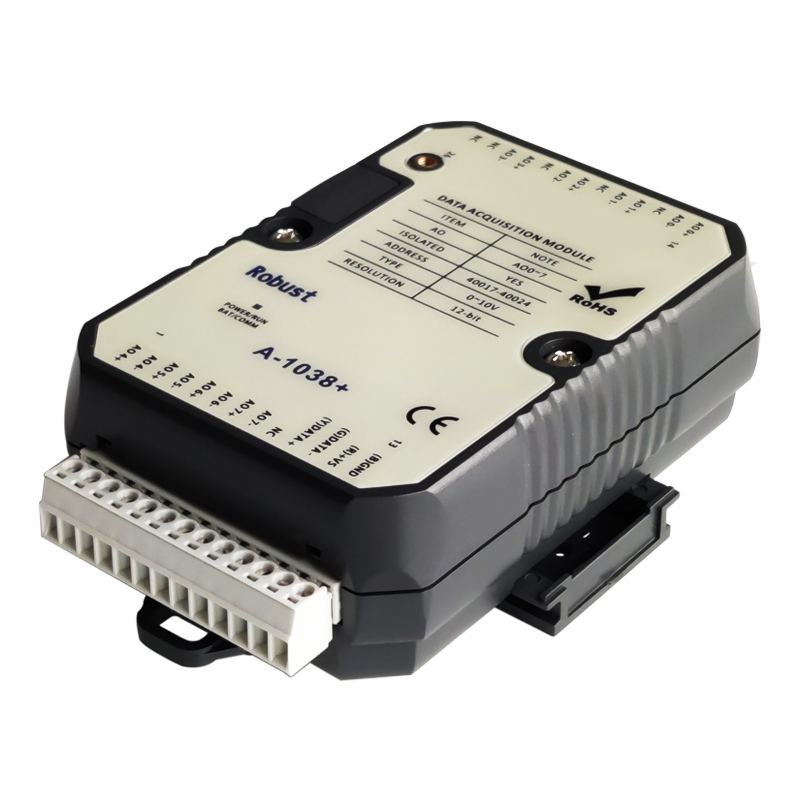

A-1038+
.jpg)
ATC remote RS-485 I/O module, support Modbus RTU/ASCII protocol, can be applied to the full range of ATC controller. And it also can communicate with other devices that support the Modbus RTU/ASCII protocol, host computer communication or remote command control. It can make the series of module work in Bus network and the I/O points can flexible expansion.
※ Analog Output Channels : 8
※ 12-bit resolution
※ Software configurable for 0~10VDC output in individual channels
※ Supports Modbus RTU / ASCII
※ LED Indicator
※ Surge , EFT And ESD Protection
※ Dual Watchdog Timer
※ Low Power Indicator
※ Operation Range: Up To 1200 Meters
※ Free PC Software ”ATC Utility”
※ Isolation RS-485 Interface
.jpg)
|
Display |
|
|
LED Indicator |
Power |
|
Power Supply |
|
|
Power Requirement |
10-30 VDC |
|
Analog Output |
|
|
Channels |
8 |
|
Output Type |
0 ~ 10VDC |
|
Resolution |
12-bit |
|
Accuracy |
±1% of FSR |
|
Communication |
|
|
Interface |
Isolation RS-485 |
|
Data Bit |
8 bits |
|
Parity |
Odd, Even, None |
|
Stop Bits |
1,2 bits |
|
Communication Protocol |
Modbus RTU / Modbus ASCII |
|
Communication Speed |
Serial: From 1,200 to 115.2k |
|
Comm. Distance |
Serial: 1.2km |
|
Data Flow Control |
Yes |
|
General |
|
|
Watchdog Timer |
System & Communication |
|
Connector |
2 × plug-in terminal block (#14~28 AWG) |
|
Temperature(Operating) |
-10 ~ +70℃(+14 ~ +158°F) |
|
Humidity |
5~95 %RH |
|
Temperature(Storage) |
-25 ~ +85℃(-13 ~+185°F) |
|
Degree Of Protection |
IP20 |
|
Installation |
35 mm DIN rail / Flush mounting |
|
Dimension（W×H×D） |
76.4*118.2*40.7 mm |
.jpg)
Application Diagram:
