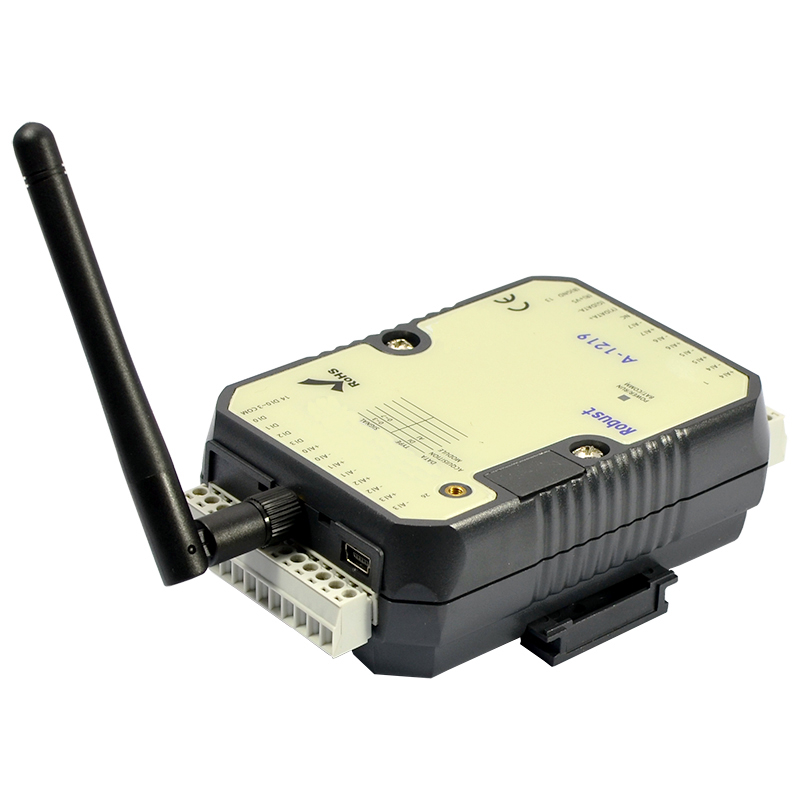

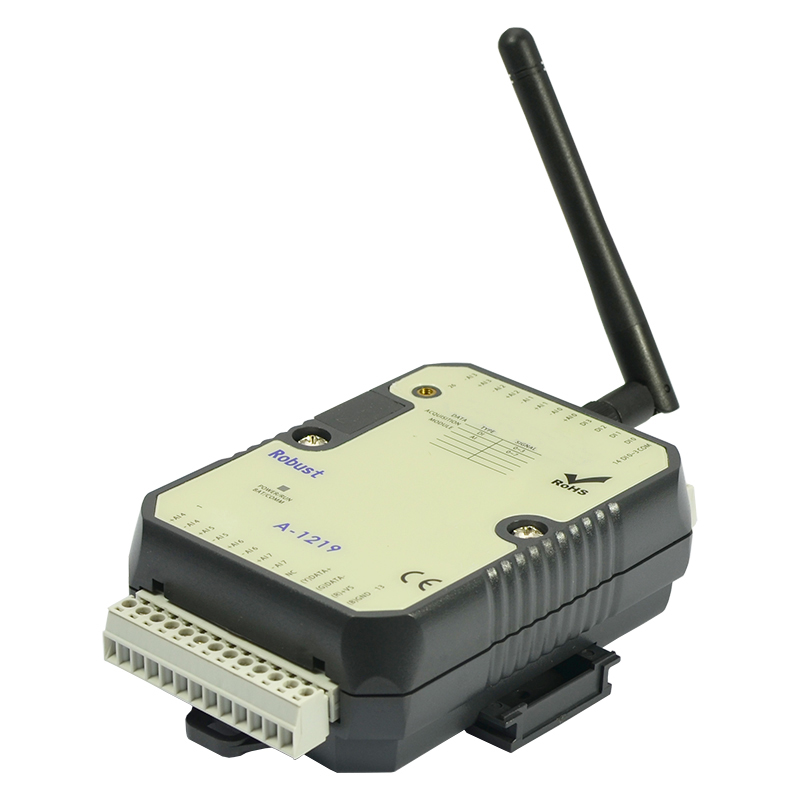

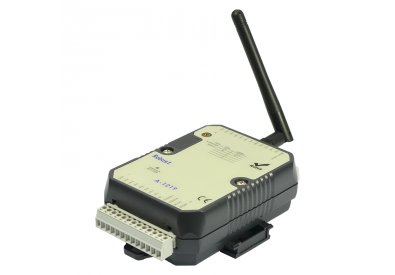

A-1219
.jpg)
ATC remote Wi-Fi I/O Modbus module, support RTU/ASCII/TCP protocol, through the RS-485 communication port and ATC series controller to control the communication. And it also can communicate with other devices that support the Modbus RTU/ASCII protocol, host computer communication or remote command control. It also can be connected to the A-3290 Wi-Fi bidirectional remote controller directly control the output, no the need for any controller. The Wi-Fi function of the module support set up AP mode and Client mode to make the series of module work in Bus network or networking by Wi-Fi. To make the I/O points can flexible expansion.
※ Analog Input 16-bit Resolution ,Burn-out Detection
※ Support Analog Input/Output 0/4 ~20mA
※ Support J,K,T,E,R,S,B Thermocouple
※ Support 10K/6.8K/4.7K/3.3K/3K/2.7K/2.252K/2.1K/2K/1.5K/1K Thermistor
※ WIFI Interface + RS-485 Interface + USB Interface
※ Hi-Speed RS-485 Interface (Max 921600bps)
※ Standard 2.4GHz IEEE 802.11 b/g (Wi-Fi)
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Support MODBUS TCP/IP, UDP/IP ,RTU ,ASCII
※ Able To Connect Wi-Fi AP,Internet Of Things (IOT),Industry 4.0
※ A-3290 Can Be Directly Connected To The Control Output,Without Any Controller
※ Free monitor PC software "Utility"
.jpg)
|
Type |
A-1219 |
|
|
Operation Voltage |
10 ~ 30VDC/24VAC |
|
|
Inputs |
4 * Isolation DI |
Status Low：<1VDC |
|
Status High：>5~30VDC |
||
|
Outputs |
- |
|
|
Continuous Current |
- |
|
|
Communication Baud Rate |
2400 ~ 921600bps |
|
|
Isolation |
YES（5000VDC） |
|
|
Input Operating Frequency |
10Hz |
|
|
Output Operating Frequency |
10Hz |
|
|
Operation Temperature |
-20 to +75℃ |
|
|
Degree Of Protection |
IP20 |
|
|
Installation |
35 mm DIN rail / Flush mounting |
|
|
Dimension（W×H×D） |
76.4*118.2*38.5 mm |
|
|
Analog Inputs |
8*（16 - bit） |
|
|
Analog Input Type |
0/4~20mA,J,K,T,E,R,S,B,Thermistor (-270 ~ +1800℃) |
|
|
Analog Outputs |
- |
|
|
Analog Output Type |
- |
|
|
Input Impedance |
Current: 100 Ω Voltage : 10 MΩ |
|
|
Analog Input / Output Accuracy |
±0.1% / - |
|
|
Interface |
Wi-Fi + RS-485 + USB |
|
|
Channel Independent Configuration |
Yes |
|
|
Sampling Rate |
10 sample/second（Total） |
|
|
CMR @ 50/60 Hz |
120 dB |
|
|
Span Drift |
±50 ppm/℃ |
|
|
Zero Drift |
±18 μV/℃ |
|
|
Temperature Ranges |
(J:-210~760℃) (K:-270~1,370℃) (T:-270~400℃) (E:-270~1,000℃) (R:0~1,750℃) (S:0~1,750℃) (B:0~1,800℃) (Thermistor-10K-T2:0~100℃) (Thermistor-10K-T3:0~100℃) (Thermistor-6.8K:-10~100℃) (Thermistor-4.7K:-10~100℃) (Thermistor-3.3K:-20~100℃)(Thermistor-3K:-20~100℃) (Thermistor-2.7K:-20~100℃) (Thermistor-2.252K:-20~100℃) (Thermistor-2.1K:-30~100℃) (Thermistor-2K:-30~100℃) (Thermistor-1.5K:-40~100℃) (Thermistor-1K:-40~100℃) |
|
.jpg)
Application Diagram:
Unit: mm
