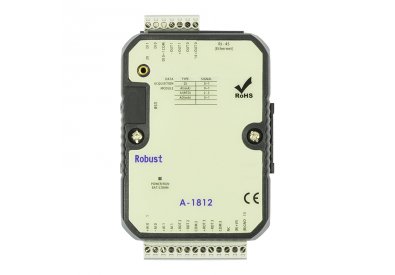

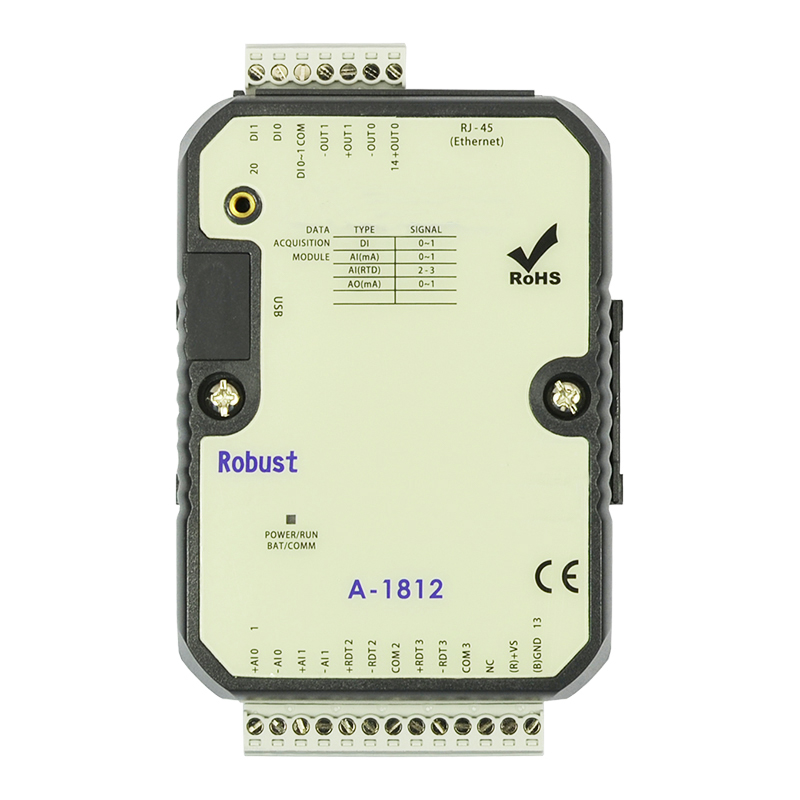

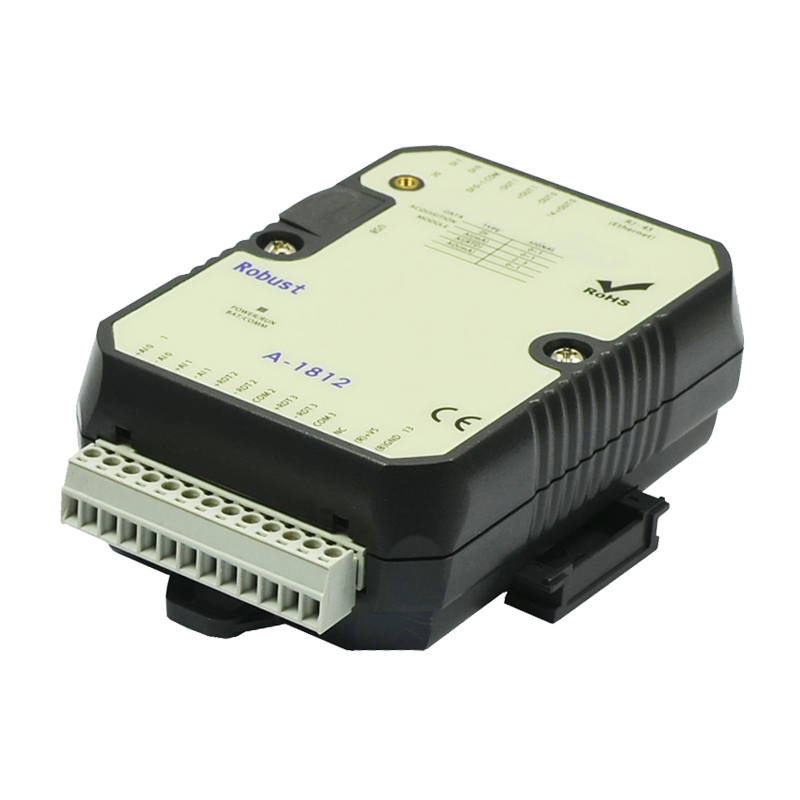

4AI 2DI 2AO Ethernet Remote I/O Module
Part number: A-1812
In Stock : Available
ATC remote Ethernet I/O Modbus module, support TCP/IP protocol, through the Ethernet interface with other Modbus TCP/IP protocol or PC communication equipment or remote control. Ethernet also supports 8 independent TCP communication connection, can use mobile phone, computer network remote monitoring page, also can be connected to the A-3290 Wi-Fi bidirectional remote controller directly control the output, no the need for any controller.
※ Analog Input 16-bit Resolution
※ Analog Output 12-bit Resolution
※ Support Analog Input/Output 0/4 ~20mA
※ Support PT-100 or PT-1000 (2/3/4-wired)
※ Burn-out Detection
※ Ethetnet Interface + USB Interface
※ Supports 8 Independent Sockets Simultaneously
※ Remote monitoring and control with mobile devices
※ Built-in Step Motor Driver, Connect Directly
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Support MODBUS TCP/IP
※ Flexible User-defined Modbus address
※ Support LAN 10/100 Mbps Communication Rate
※ Free monitor PC software "Utility"
Type
|
A-1812
|
Operation Voltage
|
10 ~ 30VDC/24VAC
|
Inputs
|
2 * Isolation DI
|
Status Low:<1VDC
|
Status High:>5~30VDC
|
Outputs
|
-
|
Continuous Current
|
-
|
Ethernet
|
10/100Mbps
|
Isolation
|
YES(5000VDC)
|
Input Operating Frequency
|
10Hz
|
Output Operating Frequency
|
10Hz
|
Operation Temperature
|
-20 to +75℃
|
Degree Of Protection
|
IP20
|
Installation
|
35 mm DIN rail / Flush mounting
|
Dimension(W×H×D)
|
76.4*118.2*38.5 mm
|
Analog Inputs
|
4*(16 - bit)
|
Analog Input Type
|
2* 0/4~20mA
2* PT-100/1000(-200 ~ +600℃)
|
Analog Outputs
|
2*(12-bit)
|
Analog Output Type
|
0/4 ~20mA
|
Input Impedance
|
Current: 100 Ω
RTD : 10 MΩ
|
Analog Input / Output Accuracy
|
±0.1% / ±1%
|
Interface
|
Ethernet + USB
|
Channel Independent Configuration
|
Yes
|
Sampling Rate
|
10 sample/second(Total)
|
CMR @ 50/60 Hz
|
120 dB
|
Span Drift
|
±50 ppm/℃
|
Zero Drift
|
±18 μV/℃
|
Temperature Ranges
|
(PT-100:-200~+600℃) (PT-1000:-200~+600℃)
|
Application Diagram:
Unit: mm
