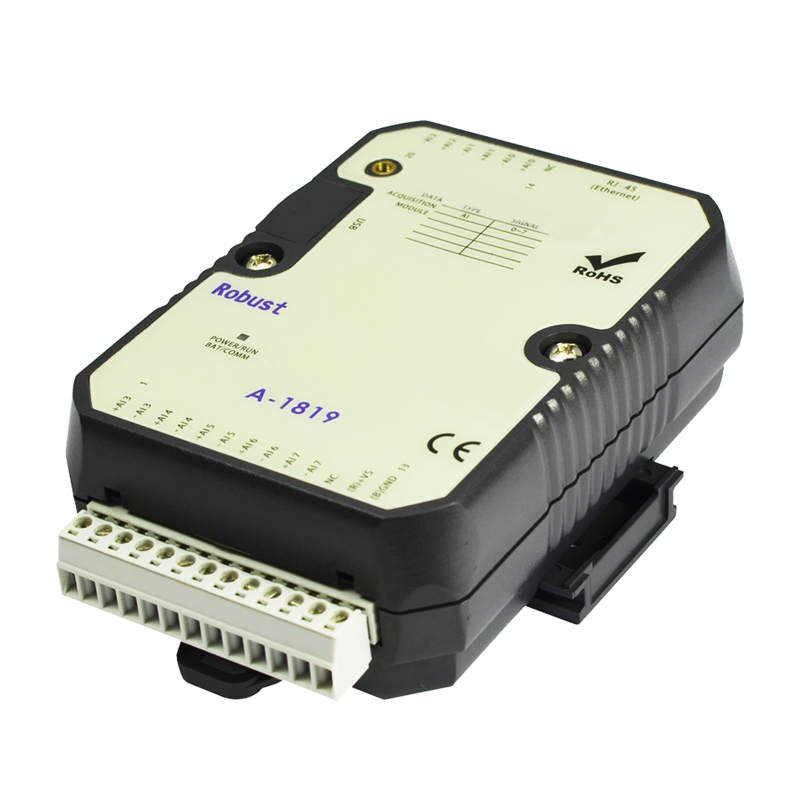

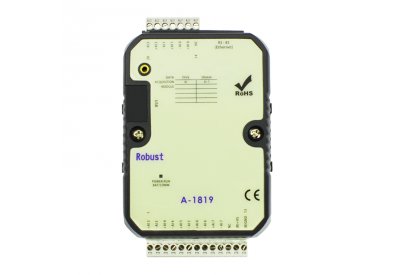

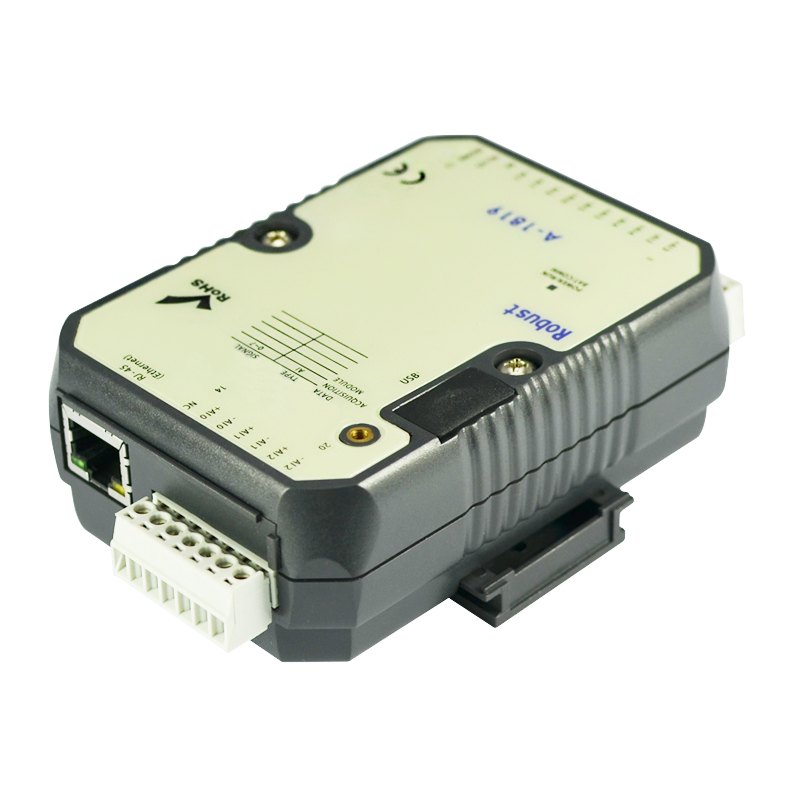

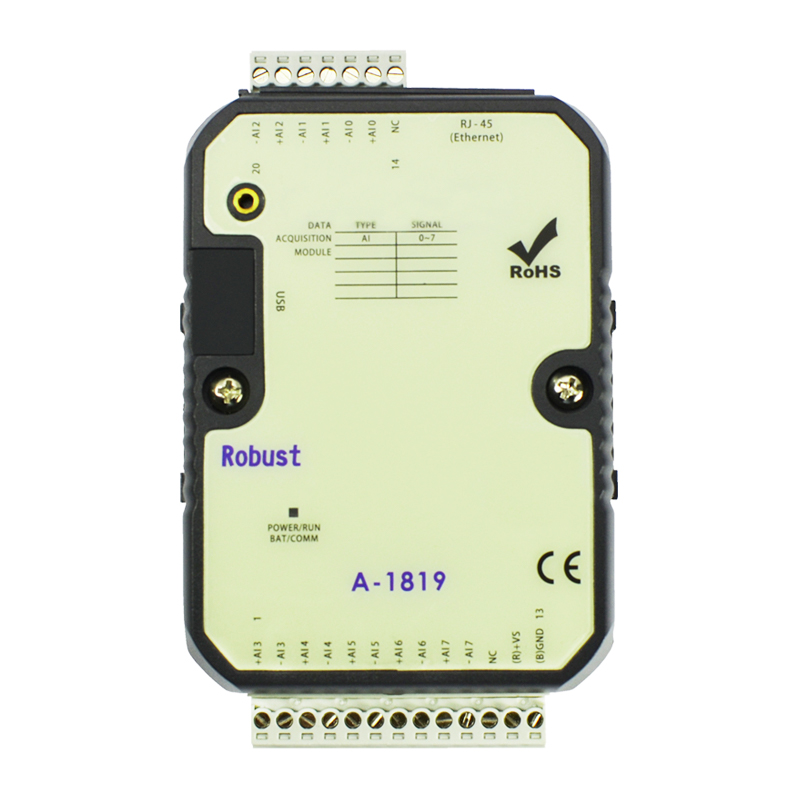

A-1819
.jpg)
ATC remote Ethernet I/O Modbus module, support TCP/IP protocol, through the Ethernet interface with
other Modbus TCP/IP protocol or PC communication equipment or remote control. Ethernet also
supports 8 independent TCP communication connection, can use mobile phone, computer network
remote monitoring page, also can be connected to the A-3290 Wi-Fi bidirectional remote controller
directly control the output, no the need for any controller.
※ Analog Input 16-bit Resolution
※ Support Analog Input 0/4 ~20mA
※ Support J,K,T,E,R,S,B, Thermocouple, Thermistor
※ Burn-out Detection
※ Ethetnet Interface + USB Interface
※ Supports 8 Independent Sockets Simultaneously
※ Remote monitoring and control with mobile devices
※ Built-in Step Motor Driver, Connect Directly
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Support MODBUS TCP/IP
※ Flexible User-defined Modbus address
※ Support LAN 10/100 Mbps Communication Rate
※ Free monitor PC software "Utility"
.jpg)
|
Type |
A-1819 |
|
|
Operation Voltage |
10 ~ 30VDC/24VAC |
|
|
Digital Inputs |
- |
Status Low：<1VDC |
|
Status High：>5~30VDC |
||
|
Digital Outputs |
- |
|
|
Continuous Current |
- |
|
|
Communication Rate |
10M/100M |
|
|
Isolation |
YES（5000VDC） |
|
|
Input Operating Frequency |
10Hz |
|
|
Output Operating Frequency |
10Hz |
|
|
Operation Temperature |
-20 to +75℃ |
|
|
Degree Of Protection |
IP20 |
|
|
Installation |
35 mm DIN rail / Flush mounting |
|
|
Dimension（W×H×D） |
76.4*118.2*38.5 mm |
|
|
Analog Inputs |
8*（16 - bit） |
|
|
Analog Input Type |
0/4~20mA,J,K,T,E,R,S,B,Thermistor (-270 ~ +1800℃) |
|
|
Analog Outputs |
- |
|
|
Analog Output Type |
- |
|
|
Input Impedance |
Current: 100 Ω Voltage : 10 MΩ |
|
|
Analog Input / Output Accuracy |
±0.1% / - |
|
|
Interface |
Ethernet + USB |
|
|
Channel Independent Configuration |
Yes |
|
|
Sampling Rate |
10 sample/second（Total） |
|
|
CMR @ 50/60 Hz |
120 dB |
|
|
Span Drift |
±50 ppm/℃ |
|
|
Zero Drift |
±18 μV/℃ |
|
|
Temperature Ranges |
(J:-210~760℃) (K:-270~1,370℃) (T:-270~400℃) (E:-270~1,000℃) (R:0~1,750℃) (S:0~1,750℃) (B:0~1,800℃) (Thermistor-10K-T2:0~100℃) (Thermistor-10K-T3:0~100℃) (Thermistor-6.8K:-10~100℃) (Thermistor-4.7K:-10~100℃) (Thermistor-3.3K:-20~100℃)(Thermistor-3K:-20~100℃) (Thermistor-2.7K:-20~100℃) (Thermistor-2.252K:-20~100℃) (Thermistor-2.1K:-30~100℃) (Thermistor-2K:-30~100℃) (Thermistor-1.5K:-40~100℃) (Thermistor-1K:-40~100℃) |
|
.jpg)
Application Diagram:
Unit: mm
