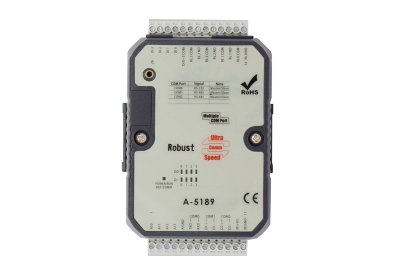

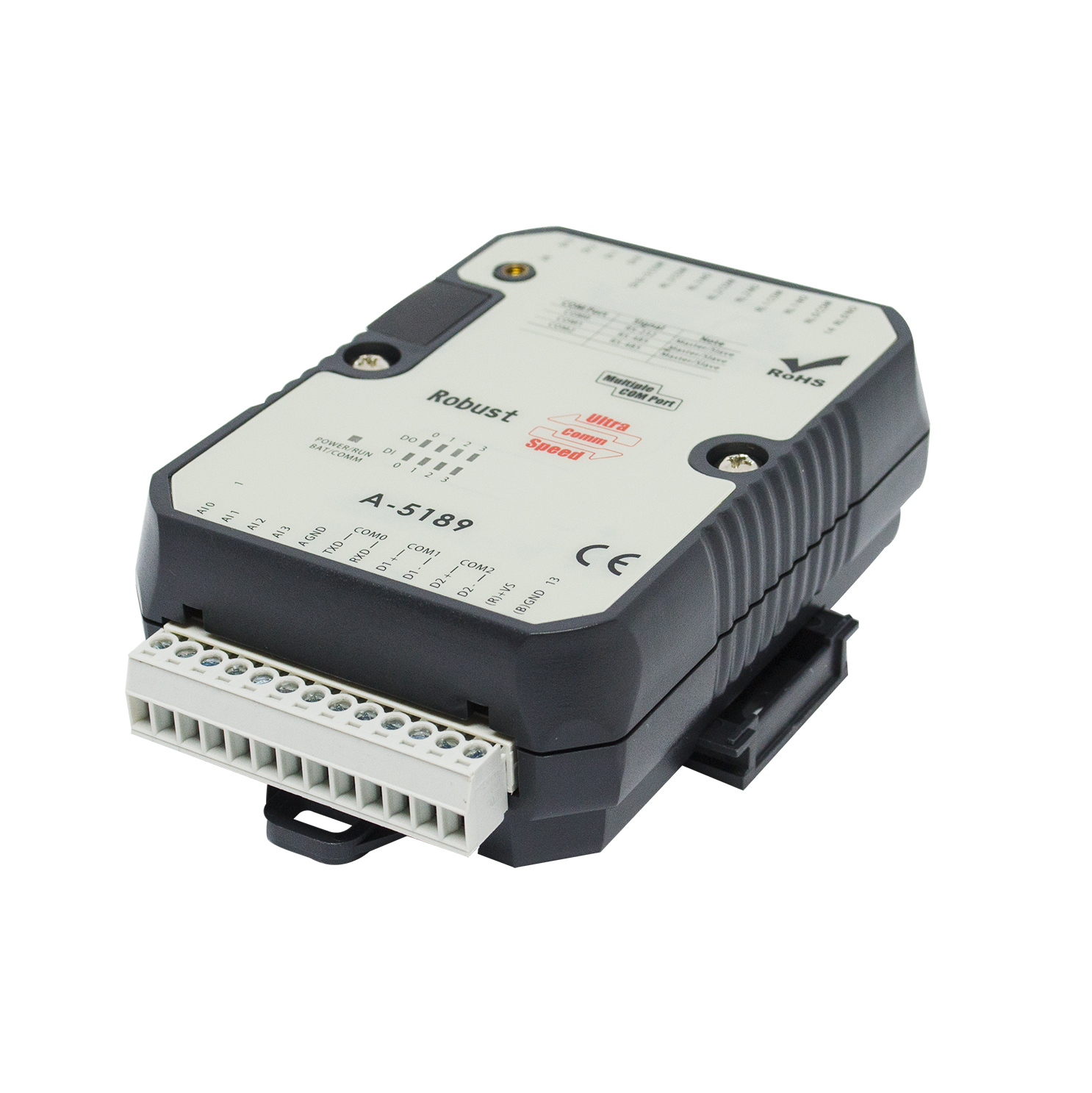

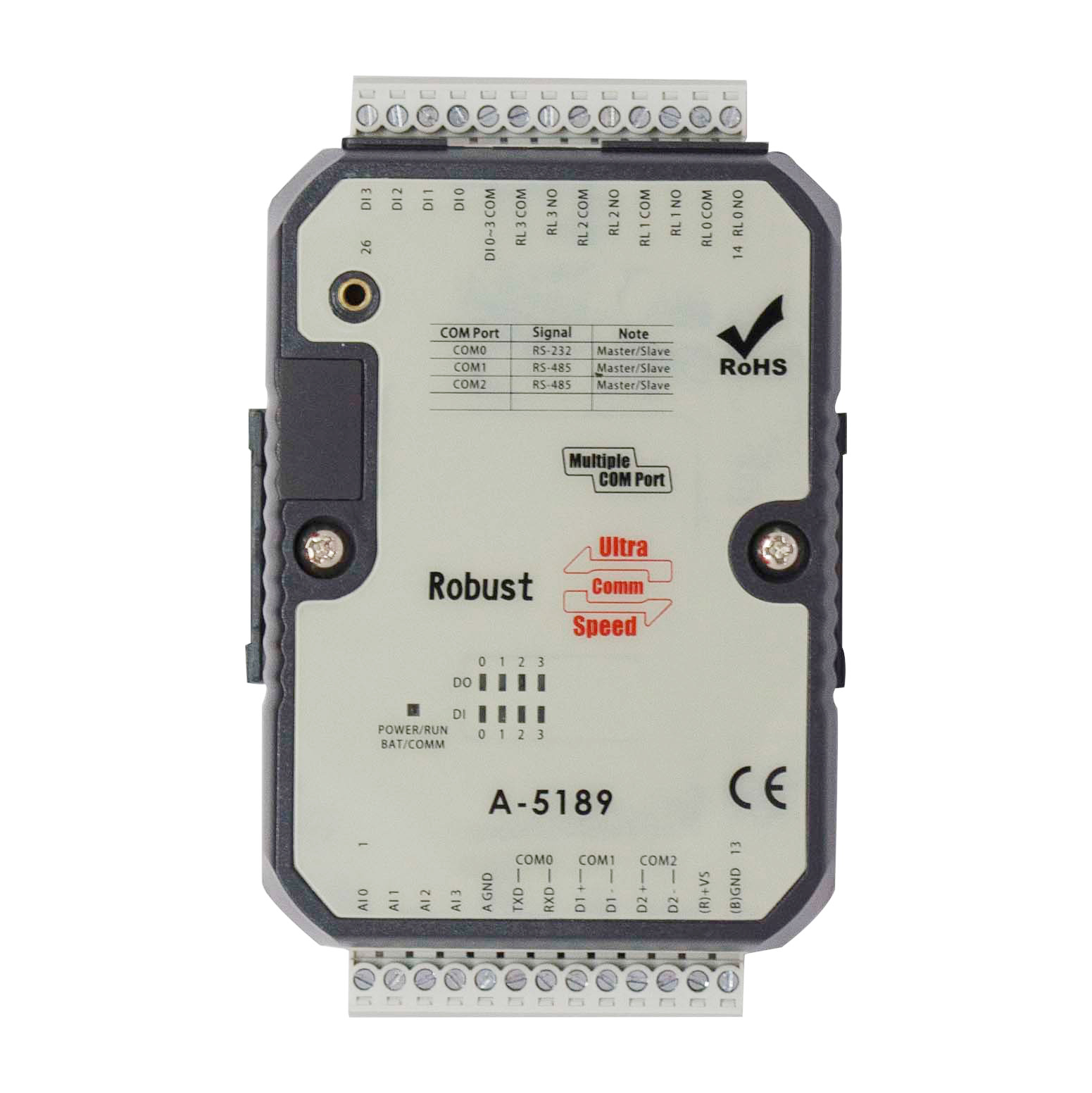

A-5189
Product overview:
ATC launched the product performance, stability, are leading the global industry with the world, has created numerous records of [the world] first, the follow-up will be performed with innovative concept to serve all sorts of different areas of application.
Product features:
※ Creation of control programs in Function Block Diagram (FBD)or Ladder Diagram (LAD)
※ 4-Axis Synchronous Motion, 100 KHz PWM (Total 400KHz)
※ Able To Edit The Parameter Among The Controller Operation
※ Multiple AUTO-PI Synchronous Function
※ Multi-Lingual Display Menu
※ Enhance Password & Safety Function
※ Text Display Can Be Pre-Programmed in Two Languages
※ Built-in Standard High Frequency Counter (250KHz per Input, Total 1000KHz)
※ Built-in Standard Real Time Clock (RTC)
※ PC Program Can be Used For All A-61/52/62 Series
※ ATP2 Text Panel Can Plug & Play Directly
※ Built-in Standard RS-485 Port, Connect More Than 10000 IOs Via Remote IO Module
※ Memory Card Which Has Copy & Password Protection
※ Connect Encoder & Multi-Sensors Directly
※ Built-in Step Motor Driver, Connect Directly
※ Built-in Datalog Function, MicroSD Plug-in
※ Display Text Display Diversity Patterns, Scrolling Text, Bar Charts, Indicators ....
※ 104 FBD Integrated Functions, 97 LD Integrated Functions
※ Astronomical Clock Function
※ ATP2 Text Panel Built-in Function Key
※ Digital Oscilloscope Function, Real-Time Monitoring
※ High-Level Math Functions
※ Communication Protocol MODBUS RTU/ASCII & Multi Format
※ Block Name Define, Program Comment
※ Communication Baud Rate 921600 bps
※ Custom Truth Table, Without Logical Analysis
※ Multi Communication Parameter Function
※ Quick Calculation Of Nonlinear Equations
※ Random Generator Hardware
※ Free PC software“Edit＂+“Utility＂
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Independent Communication Port which can communicate with 255 units MODBUS devices synchronized
※ Built-in Current/Voltage/PT-100 Input + Current Output
Product parameters
|
Type |
A-5189 |
|
Operation Voltage |
10-30 VDC/24VAC |
|
Inputs |
4DI(Isolation) (low:<2VDC/high:>4VDC) |
|
Outputs |
4*Isolation(Relay) |
|
Continuous Current |
Relay:5A (with resistive load), 2 A (with inductive load) / Transistor:1.75A(OCP/OTP/UVLO) |
|
Output Operating Frequency |
Relay:30HZ / Transistor:100KHZ |
|
Input Operating Frequency |
250KHZ（Total 1000KHz） |
|
RTC/ Hold During Power Off |
Yes |
|
Operation Temperatur |
-20℃ - +75℃ |
|
Communication Port |
USB*1 & RS-485*2&RS-232*1 |
|
Communication Baud Rat |
1200-921600bps |
|
Degree Of Protectio |
IP20 |
|
Base Controller IO |
12 IOs |
|
Installatio |
35 mm DIN rail or Flush mountin |
|
Dimension (W x H x D mm) |
76.4*118.2*40.7mm |
|
Communication Cabl |
CAB-MINIUSB60 or RS-485 or RS-232 |
Application Diagram:
The product packing list：
- A series of A-5189
- A specification
