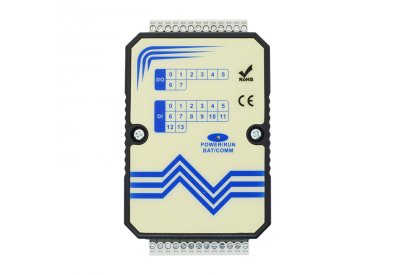

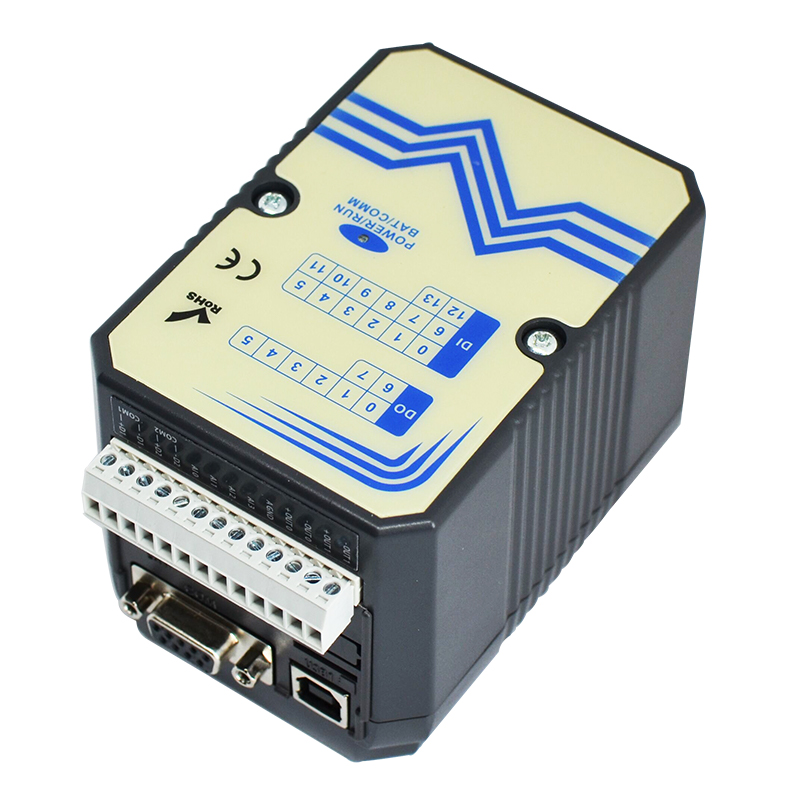

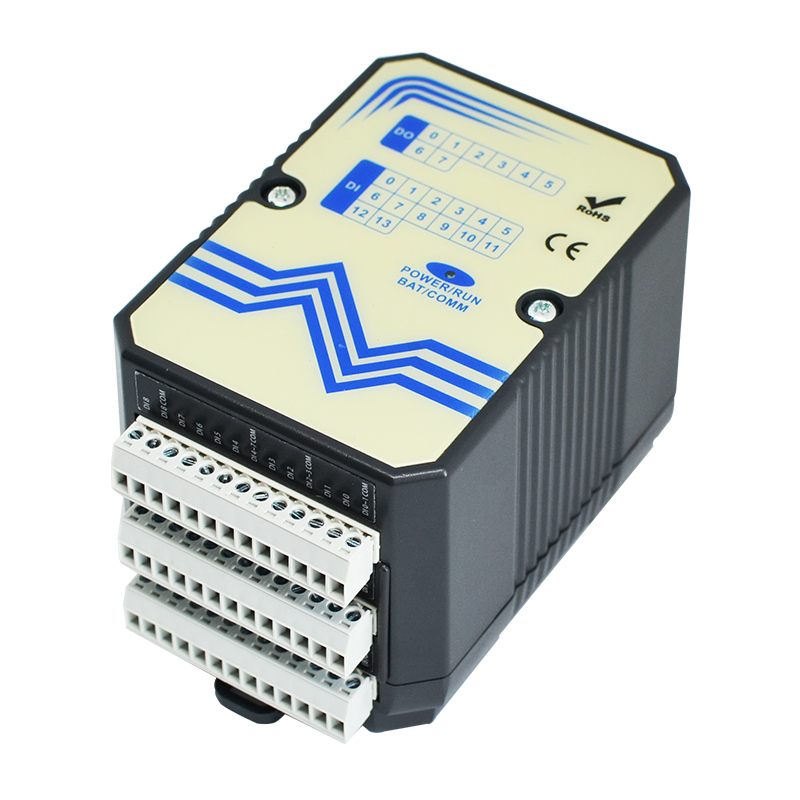

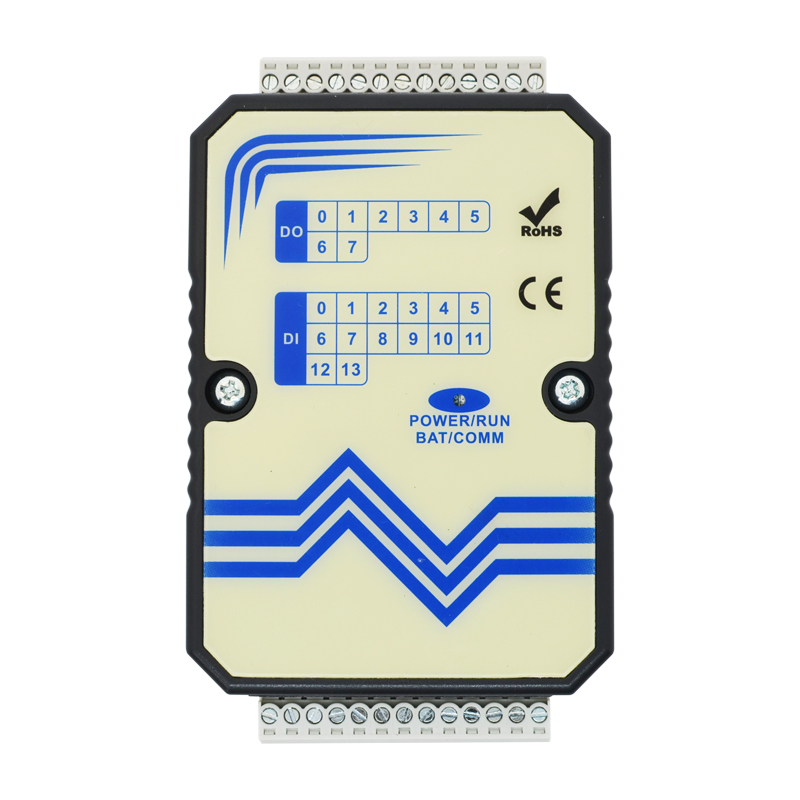

A-5389 DCS Ethernet Controller
Product overview
ATC launched the product performance, stability, are leading the global industry with the world, has created numerous records of [the world] first, the follow-up will be performed with innovative concept to serve all sorts of different areas of application.
Product features
※ Creation Of Control Programs In Function Block Diagram (FBD) Or Ladder Diagram (LAD)
※ 4-Axis Synchronous Motion, 100 KHz PWM (Total 400KHz)
※ Able To Edit The Parameter Among The Controller Operation
※ Multiple AUTO-PI Synchronous Function
※ Multi-Lingual Display Menu
※ Enhance Password & Safety Function
※ Text Display Can Be Pre-Programmed In Two Languages
※ Built-in Standard High Frequency Counter (250KHz Per Input, Total 1000KHz)
※ Built-in Standard Real Time Clock (RTC)
※ PC Program Can Be Used For All A-61/52/62 Series
※ ATP2 Text Panel Can Plug & Play Directly
※ Built-in Standard RS-485 Port, Connect More Than 10000 Ios Via Remote IO Module
※ Connect Encoder & Multi-Sensors Directly
※ Built-in Step Motor Driver, Connect Directly
※ Built-in Datalog Function, MicroSD Plug-in
※ Display Text Display Diversity Patterns, Scrolling Text, Bar Charts, Indicators ....
※ 116 FBD Integrated Functions, 111 LD Integrated Functions
※ Astronomical Clock Function
※ ATP2 Text Panel Built-in Function Key
※ Digital Oscilloscope Function, Real-Time Monitoring
※ High-Level Math Functions
※ Communication Protocol MODBUS TCP-IP/RTU/ASCII & Multi
※ Block Name Define, Program Comment Format
※ Communication Baud Rate 921600 bps
※ Custom Truth Table, Without Logical Analysis
※ Multi Communication Parameter Function
※ Quick Calculation Of Nonlinear Equations
※ Random Generator Hardware
※ Free PC Software“ATC Edit＂+“ATC Utility＂
※ The A-3290 Two-Way Communicate Transmitter Able To Connect Wi-Fi AP, Internet Of Things (IOT), Remote Control
※ Able To Use For Master Or Slave Application
※ Able To Set For Ethernet To MODBUS 3-port Gateways
※ Able To Set For Ethernet to MODBUS 3-port Serial Device Servers
※ Built-in Voltage Input + Current Output
|
Type |
A-5389 |
|
Operation Voltage |
10~30VDC / 24VAC |
|
Digital Inputs |
14*DI(Isolation) status low:<3.9VDC, status high:>4VDC |
|
Digital Outputs |
8*Isolation(Relay) |
|
Continuous Current |
Relay: 5A(with resistive load), 2A(with inductive load) |
|
Analog Inputs |
4*AI(0~10VDC) |
|
Analog Outputs |
2*AO(0/4~20mA) |
|
Input Operating Frequency |
250KHz(Total 1000KHz) |
|
RTC/Hold During Power Off |
Yes |
|
Operation Temperature |
-20 to +75℃ |
|
Communication Ports |
USB*1 & RS-485*2 & RS-232*1 & Ethernet(100M) |
|
Degree Of Protection |
IP20 |
|
Memory Card |
Micro SD |
|
Base Controller IOs |
28 AIOs |
|
Installation |
35 mm DIN Rail or Flush Mounting |
Application Diagram:

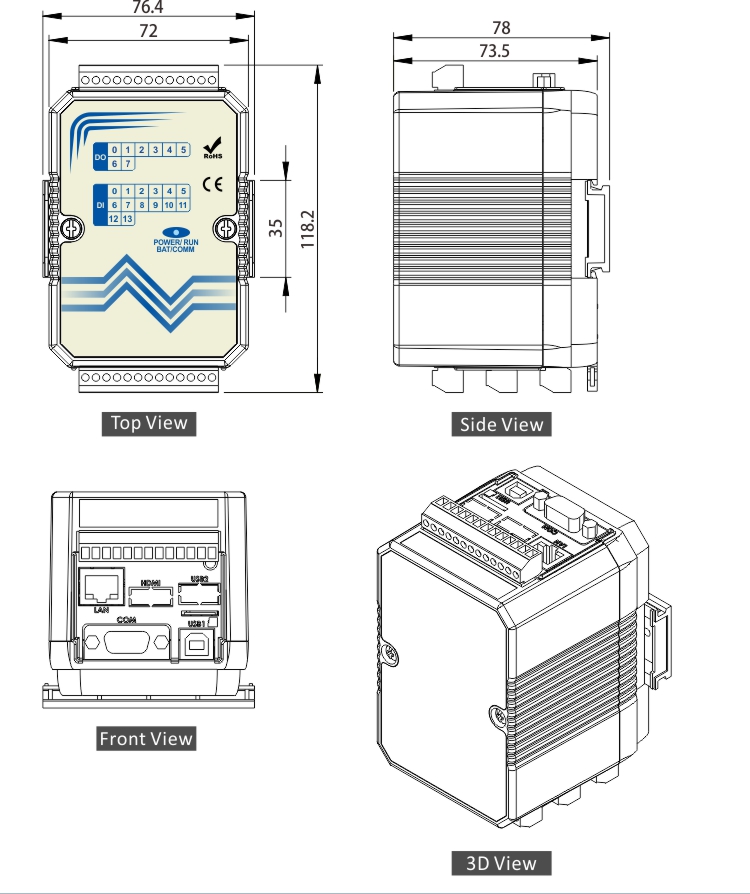

Dimension (Unit: mm)

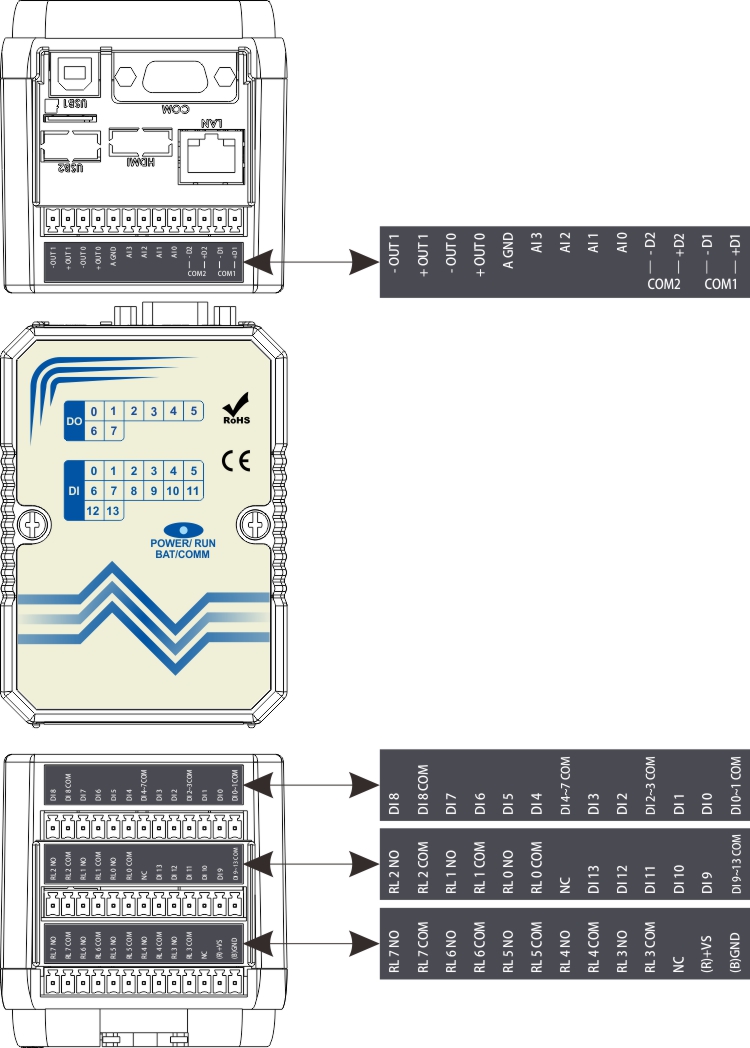

Pin Table
The product packing list
- A-5389 × 1
- Specification × 1
