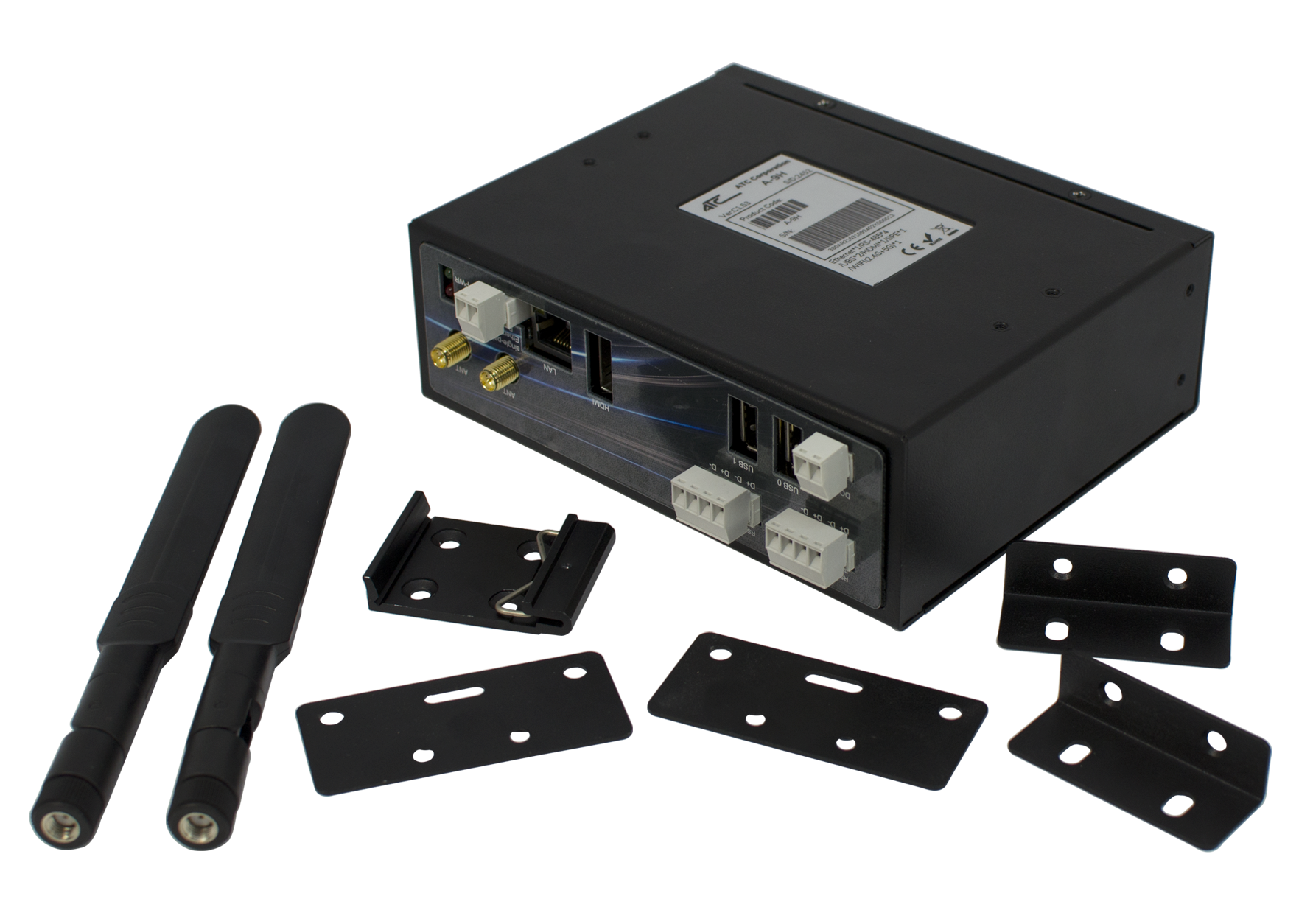

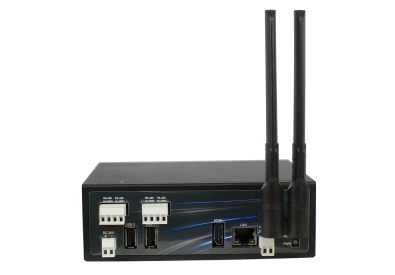

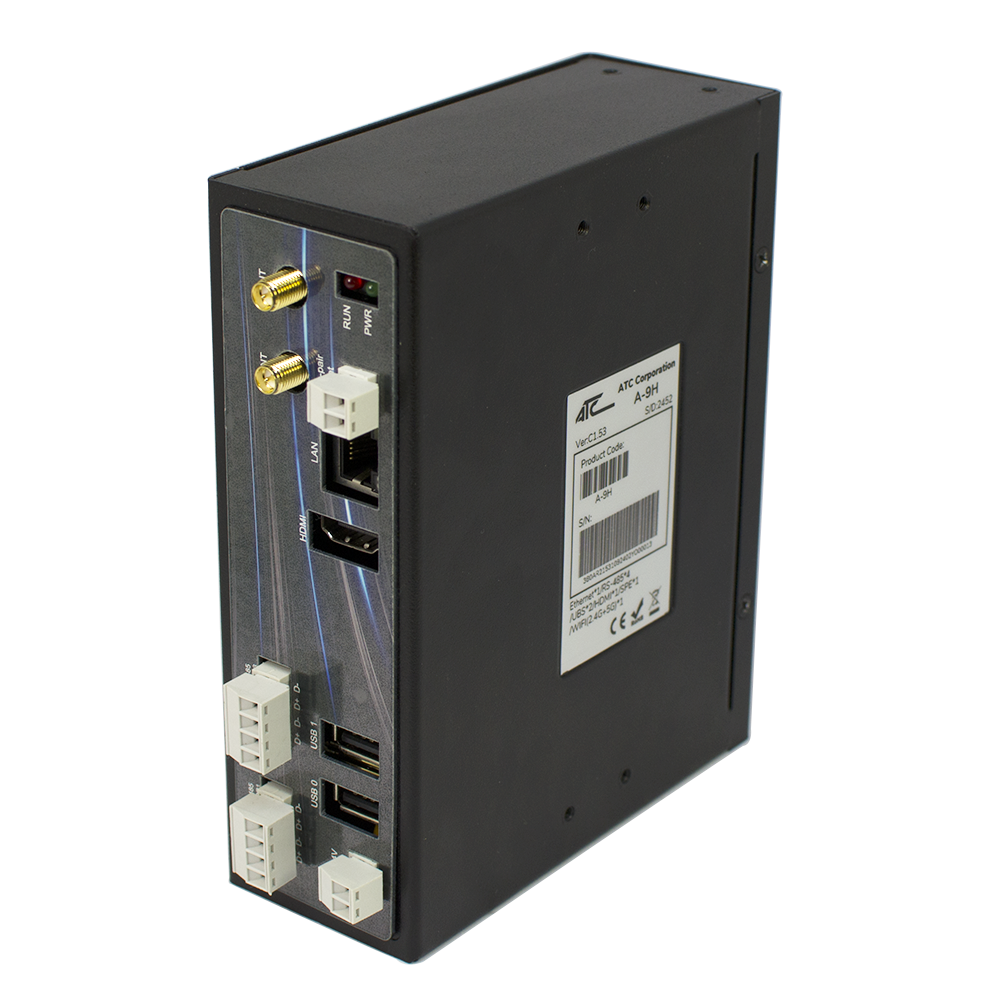

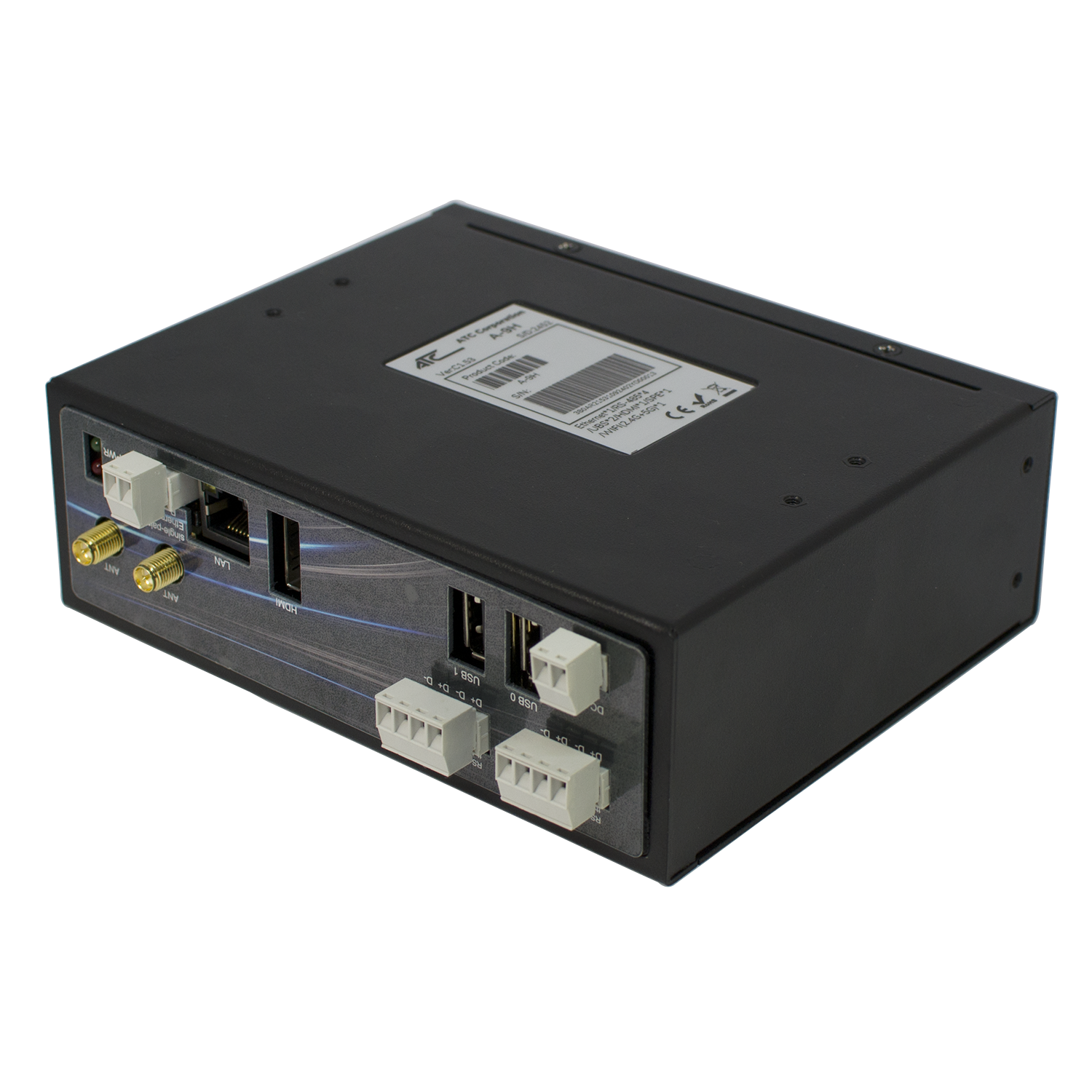

A-9H Small-size Modular Embedded Box PC
A-9H is an ARM based high-performance loT Box PC, which has an open platform design with Quad Core processor Four RS-485 serial ports, one 10/100/1000 Ethernet ports, two USB 2.0 port and operating temperature range of -10~+55'C. Built-in Wi-Fi (2.4G+5G) modules. A-9H enables system integrators to develop applications precisely for renewable energy, EV charger, smart city and factories which require massive data collection, cloud based application and video related monitoring solutions.
CPU
TI Cortex-A53 ARM 1.4GHz
Memory
LPDDR4 2GB onboard
Storage
eMMC 32GB onboard
USB flash drive
GPU
PowerVR Rogue AXE-1-16M GPU (500 MTexela/s, >8GFLOPs)
RTC
Built-in
WDT
Support Watch dog timer

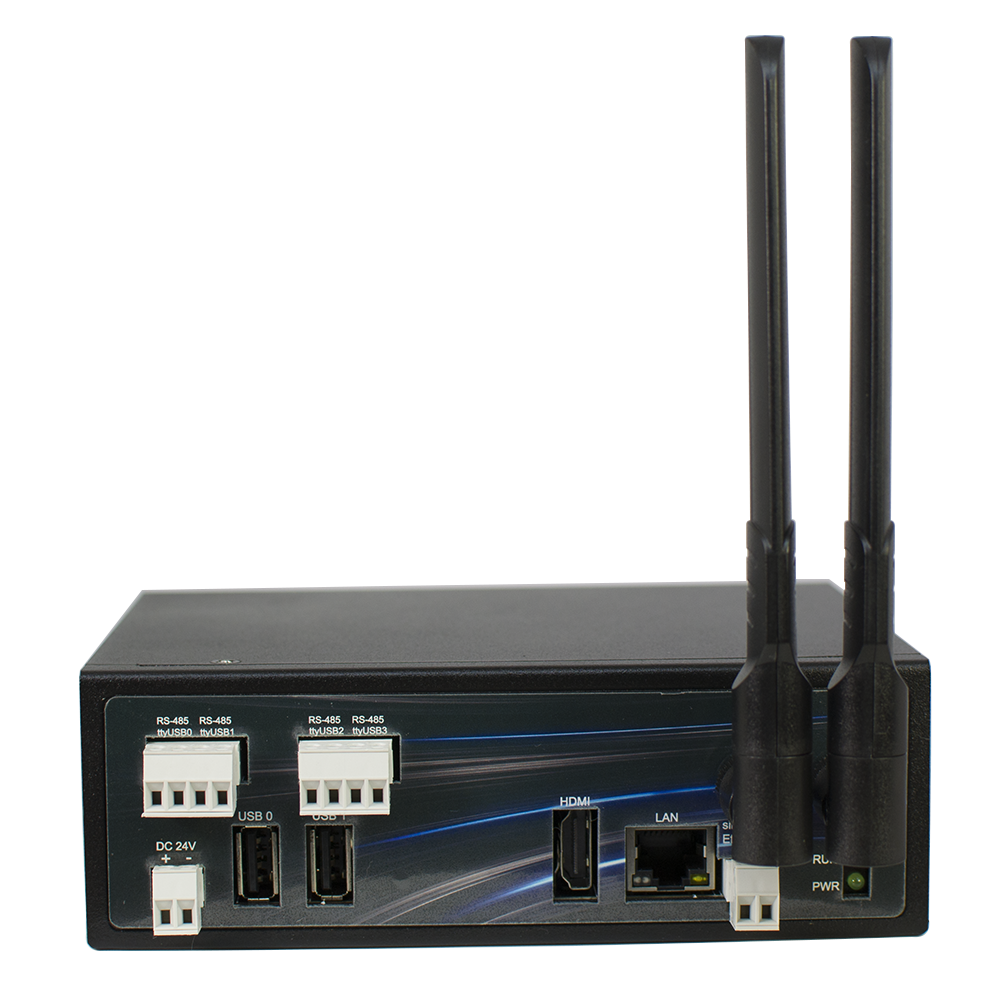

I/O Interfaces
1 x RJ-45 10/100M/1000M fast Ethernet with LED
2 x USB Host 2.0 type A
1 x HDMI for 1920 x 1080@60Hz output
4 x RS-485 2-wire
WiFi (2.4G/5G) + 2x DBI Antenna (SMA)
1x Single-Pair Ethernet with power-over-data-line
24VDC
Operating System
Linux (Debian 12 Xfe)
Built-in Node-Red
Dimensions
150mm(H) x 120mm(W) x 50mm(L)
Weight
1.0kg
Environment
Operating temperatures: -20°C to +70°C
Storage temperatures: -20°C to +85°C
Relative humidity: 90% (non-condensing)
