ATC-1000(Discontinued, use ATC-1200 instead)

Economical TCP/IP To Serial Converter(Discontinued, use ATC-1200 instead)

Part number: ATC-1000

Out of stock

Datasheet

User's Manual

Driver & software

How to order

See Larger Image

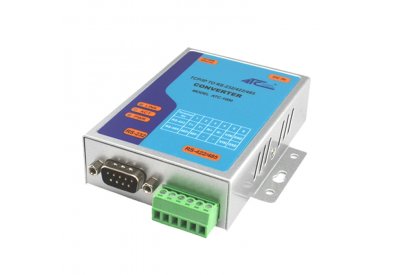

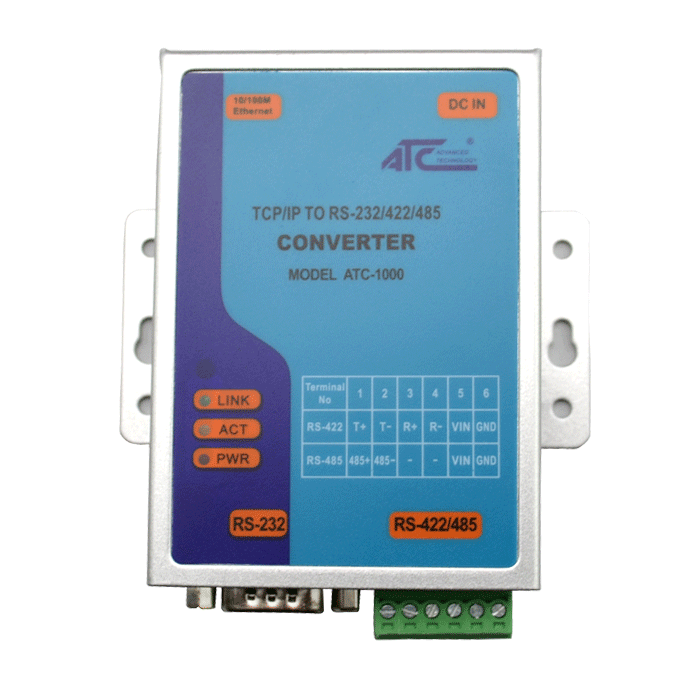

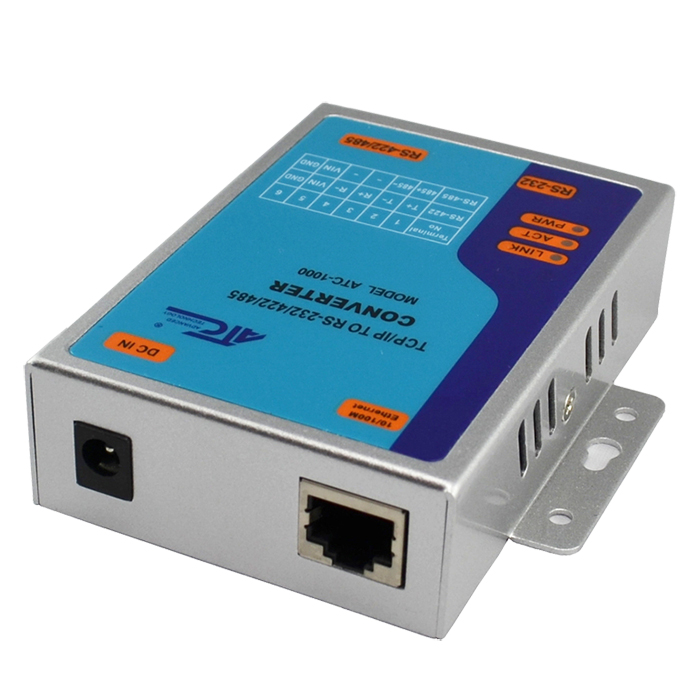

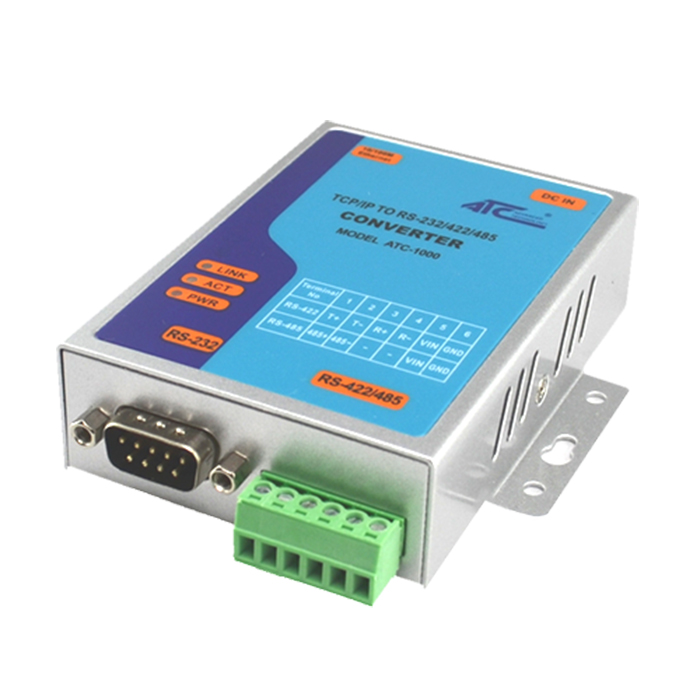

The ATC-1000 is a RS232/RS485 to TCP/IP converter integrated with a robust system and network management features designed for industrial equipment to be accessed and controlled via Intranet or Internet. By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, ATC’s ATC-1000 provides not only a robust and high performance system to make your device connecting to Network, but also ease installation and Internet access. The ATC-1000 Web Configurator is a breeze to operate and totally independent of the operating system platform you use

RS-232/422/485 3 in 1 interface
Support 10/100Mbps Ethernet port
Supports 4-wire and 2-wire RS-485 work mode
Automatic data direction control on RS-485
Supports 24VDC industrial power supply
Terminal block easily for RS-422/485 installation
Configure via webpage and windows utility
Supports virtual serial port,TCP Server/Client and UDP work mode
Built-in watchdog, system never halt.
CE, RoHS and FCC Certifications

Serial Interface
Interface Type	RS-232/485/422 3 in 1
Data Rate	300 bps to 230.4 Kbps
Data Length	5,6,7,8 bits
Parity	Odd, Even, None, Space, Mark
Stop Bits	1,1.5,2 bits
Flow Control	None, Hardware: RTS/CTS
Connector	RS-232		DB-9 male
	RS-485/422		6-pin Terminal block
Serial Line Protection	15 KV ESD and 600W Surge protection
Network Interface
Interface Type	Ethernet 10/100Mbps (Auto-Sensing), Half/Full Duplex
Connector	8-pin RJ-45
Magnetic Isolation Protection	Built-in 1.5KV
Software
Network Protocols	TCP,UDP,DHCP Client, HTTP Server, DNS Client
Configure Options	Web Page,Windows Utility
Security	Username and Password for Webpage management
Backup and Restore Configuration	Yes
OS support	Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/WIN10
System
CPU	16 bit CPU, 100MHz
Memory	256KB ROM, 768KB SDRAM
LED Indicators	LINK		10/100Base-TX Link & Activity Indicator
	ACT		Date Transmitting between Serial and Ethernet
	PWR		Power indicator
Power Supply	9~24VDC (Power consumtion : 250mA max)
Physical Characteristics
Installation	DIN-Rail Mounting
Housing	Iron (1mm)
Weight	0.45Kg

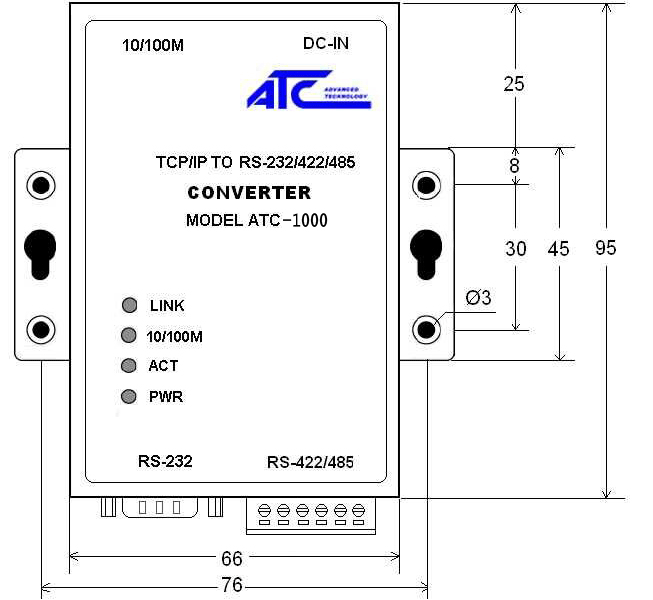

Dimensions	Without ears		100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in)
	With ears		100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)
Environmental Limits
Operating Temperature		-20 ~ 70°C (-4 ~ 158°F)
Storage Temperature		-40 ~ 85°C (-40 ~ 176°F)
Ambient Relative Humidity		5% to 95%(non-condensing)
Standards and Certifications
RoHS, CE, FCC

(1)

(2)

(3)

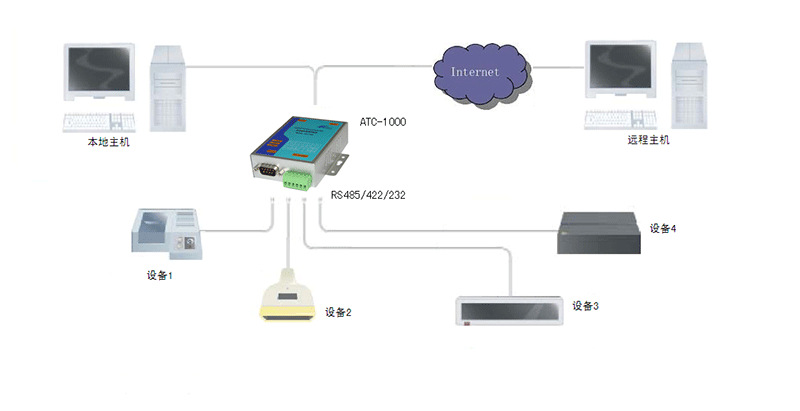

Company products are widely applied and electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective.ATC-1000 is an industrial Ethernet serial servers, with three-in-one functionality, lightning protection, support for many network protocols and adaptability, at a relatively harsh conditions also can work as usual, such as: oil, dams, steel mills, iron works, and so on. . .

ATC-1000 unit	1PCS
Documentation and software CD	1PCS
Power adapter (EU、SU、AU、CN)9v@1A	1PCS
ATC-1000Instructions Book	1PCS

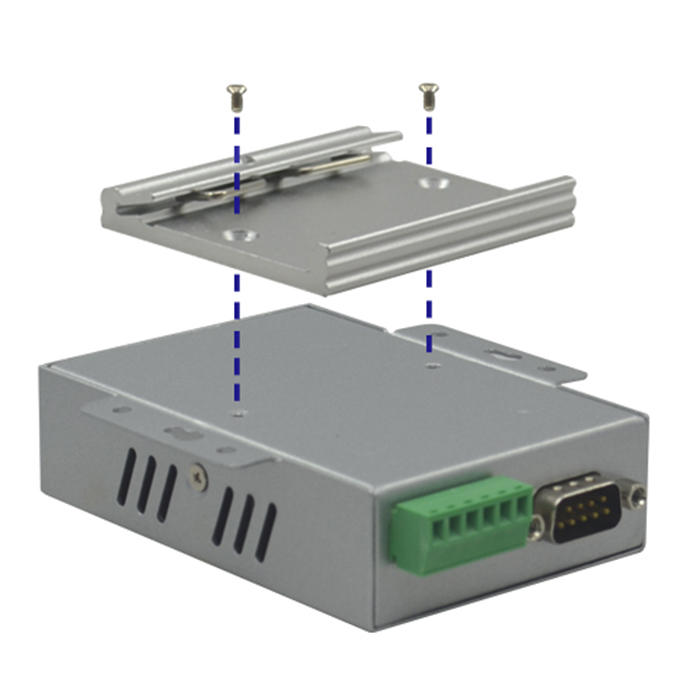

Din Rail Mounting Bracket ( for choosing accessory)
