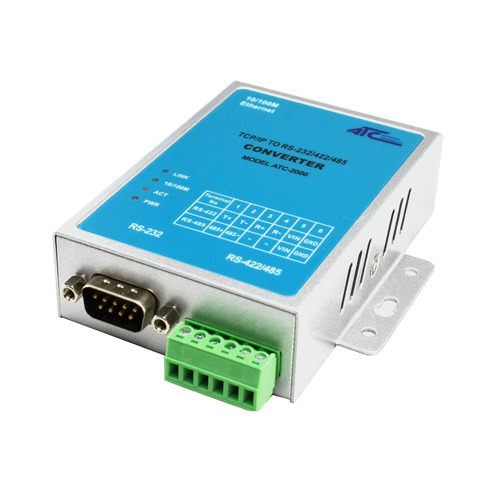

ATC-2000

High-PerformanceTCP/IP To RS-232/422/485 Converter



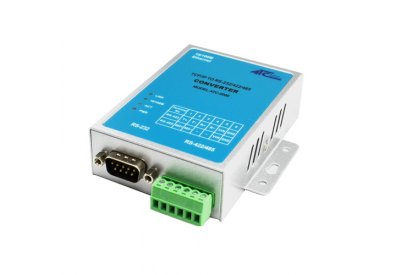

The ATC-2000 is a RS232/RS485 to TCP/IP converter integrated with a robust system and network management features designed for industrial equipment to be accessed and controlled via Intranet or Internet. By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, ATC’s ATC-2000 provides not only a robust and high performance system to make your device connecting to Network, but also ease installation and Internet access. The ATC-2000 Web Configurator is a breeze to operate and totally independent of the operating system platform you use



  • RS-232/422/485 3 in 1 interface
  • Support 10/100Mbps Ethernet port
  • Supports 4-wire and 2-wire RS-485 work mode
  • Automatic data direction control on RS-485
  • Supports 24VDC industrial power supply
  • Terminal block easily for RS-422/485 installation
  • Configure via webpage and windows utility
  • Supports virtual serial port,TCP Server/Client and UDP work mode
  • CPU: 16 bit CPU, 100MHz
  • Memory: 256KB ROM, 768KB SDRAM
  • Built-in watchdog, system never halt
  • Username and Password for Webpage management
  • Built-in HTTP server for easy remote installation and management via Web Browser
  • Support Backup and Restore Configuration
  • CE, RoHS and FCC Certifications



Serial Interface

Interface Type

RS-232/485/422 3 in 1

Data Rate

1,200bps to 230,400 bps

Data Length

5,6,7,8 bits

Parity

Odd, Even, None, Space, Mark

Stop Bits

1,2 bits

Flow Control

None, Software: Xon/Xoff, Hardware: RTS/CTS

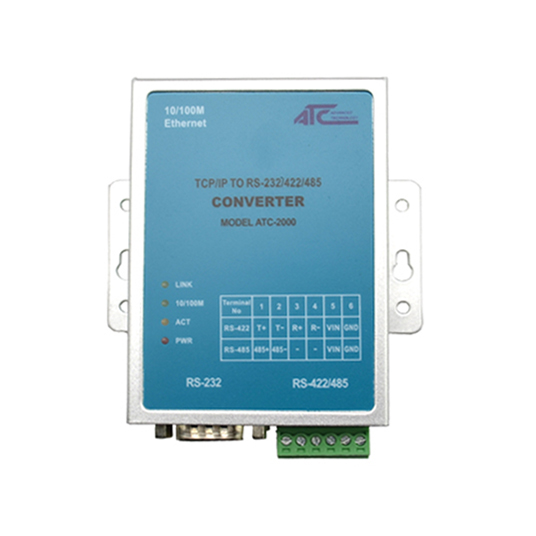

Connector

RS-232

DB-9 male

RS-485/422

6-pin Terminal block

Serial Line Protection

15 KV ESD and 600W Surge protection

Network Interface

Interface Type

Ethernet 10/100Mbps (Auto-Sensing), Half/Full Duplex

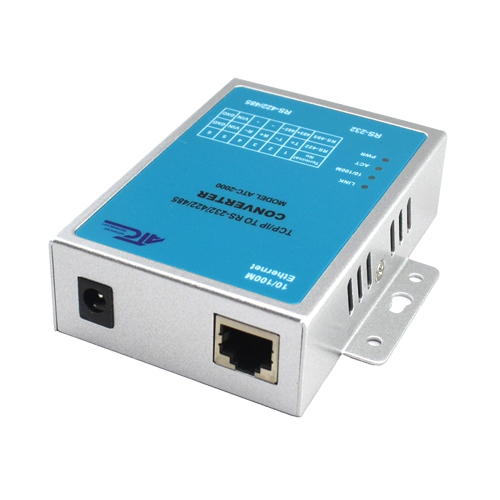

Connector

8-pin RJ-45

Magnetic Isolation Protection

Built-in 1.5KV

Software

Network Protocols

TCP,UDP,DHCP Client, HTTP Server, DNS Client

Configure Options

Web Page,Windows Utility

Security

Username and Password for Webpage management

Backup and Restore Configuration

Yes

OS support

Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/WIN10

System

CPU

16 bit CPU, 100MHz

Memory

256KB ROM, 768KB SDRAM

LED Indicators

LINK

10/100Base-TX Link & Activity Indicator

ACT

Date Transmitting between Serial and Ethernet

PWR

Power indicator

Power Supply

9~24VDC (Power consumtion : 250mA max)

Physical Characteristics

Installation

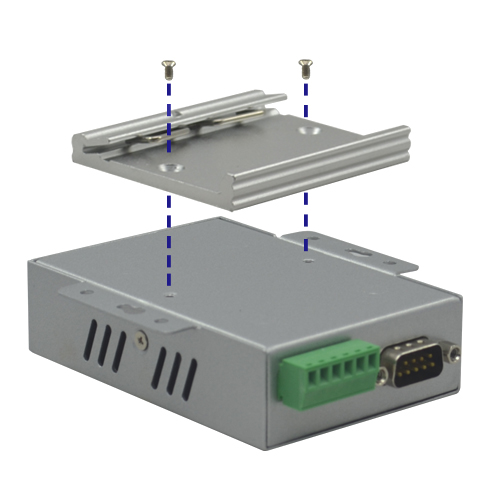

DIN-Rail Mounting

Housing

Iron (1mm)

Weight

0.45Kg

Dimensions

Without ears

100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in)

With ears

100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)

Environmental Limits

Operating Temperature

-20 ~ 70°C (-4 ~ 158°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 176°F)

Ambient Relative Humidity

5% to 95%(non-condensing)

Standards and Certifications

RoHS, CE, FCC



                                                            (1)



                                                          (2)



                                                           (3)

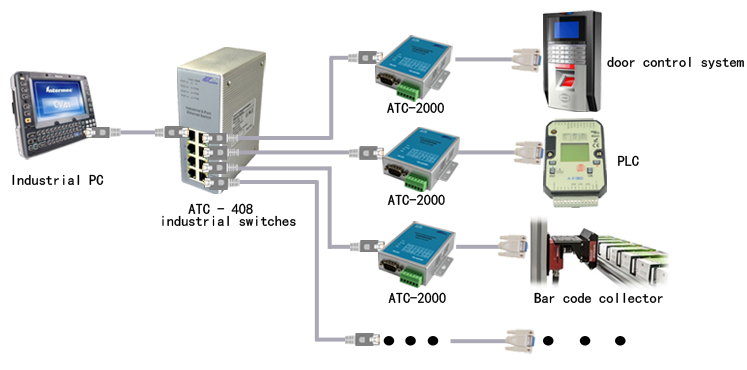

Company products are widely applied and electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective.ATC-2000 is an industrial Ethernet serial servers, with three-in-one functionality, lightning protection, support for many network protocols and adaptability, at a relatively harsh conditions also can work as usual, such as: oil, dams, steel mills, iron works, and so on. . .







ATC-2000 unit 1PCS
Documentation and software CD 1PCS
Power adapter (EU、SU、AU、CN)9v@1A 1PCS
ATC-2000Instructions Book 1PCS
Din Rail Mounting Bracket ( for choosing accessory)
