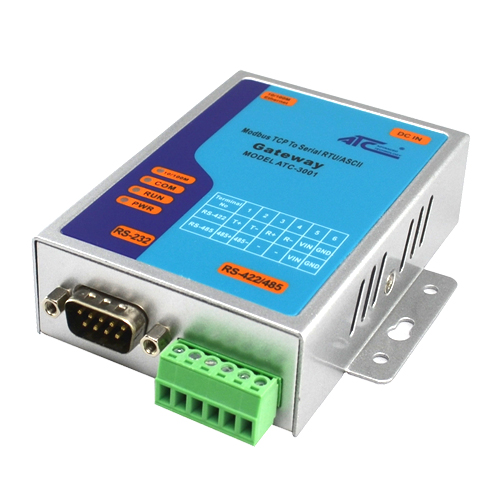

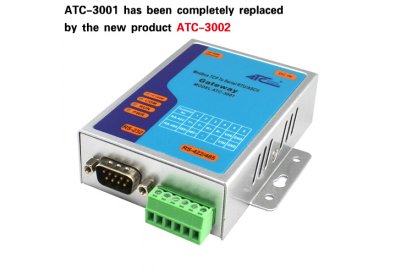

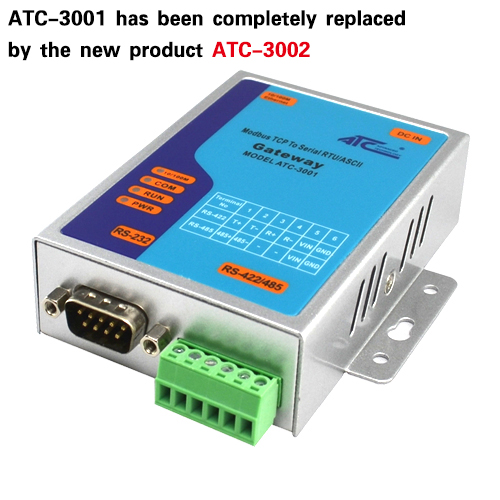

ATC-3001

Ethernet To Serial RS-232/422/485 Converter With Modbus Protocol

Modbus is an industry adopted communication protocol that is based on RTU, ASCII, and TCP protocols for various of applications; these three protocols are commonly used by a lot of equipments in the industry, such as DCS, PLC, HMI, power meters, various sensors and measuring instruments. ATC3001 series supports the standard Modbus protocol and is capable of converting the Modbus protocols between Modbus RTU/ASCII (Master) to Modbus TCP (Slave). It’s a simple and cost effective Modbus Gateway.



   1、Support RS - 485/232/422, 1200 ~ 230.4 Kbps

   2、10/100 MBPS adaptive

   3、Supports 4- and 2-wire RS-485 with AUTO-SEND™ and built-in terminator

   4、The RS - 485 automatic reverse

   5、Support 24 VDC power supply industry

   6、Wiring terminals to facilitate RS - 422/485

   7、Can be configured via the web and software

   8、Support for virtual serial port, TCP server/client, UDP working mode

   9、built-in watchdog



Serial Interface

Data Rates

1200 bps to 115,200 bps

Characters

7 or 8 data bits

Parity

Odd, Even, None, Space, Mark

Stop Bits

1 or 2

Flow Control

None, Software: Xon/Xoff, Hardware: RTS/CTS

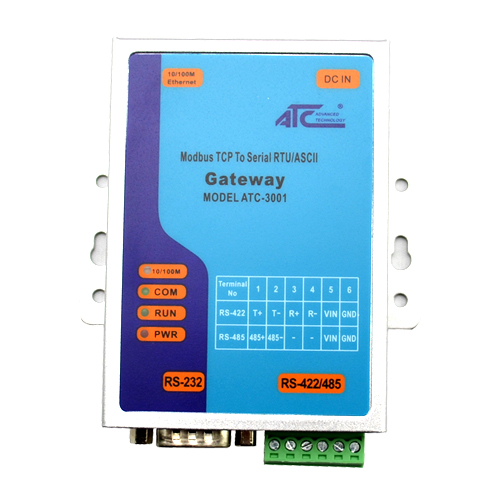

Connector

DB9-DTE (Male),Removable 6 bit Terminal Block

Network Interface

Interface

Ethernet 10Base-T or 100Base-TX (Auto-Sensing)

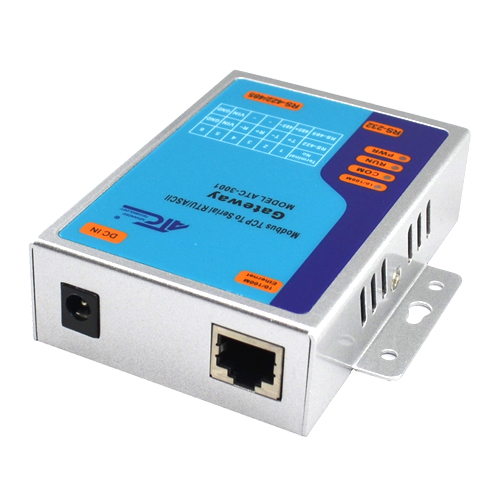

Connector

RJ45

Protocol

ModBus TCP/ASC/RTU,SNMP,HTTP,

Indicators (LED)

  • 10/100Base-TX Link
  • Date Sending / Receiving between Serial and the Ethernet
  • Power indicator

Software

Configuration

Web Page / Telnet / Serial console / Windows utility

Device View

Windows port redirection software

System

CPU

16-bit x86 Embedded CPU

Memory

512 Kbytes Flash, 512Kbytes SDRAM, 512Kbytes EEPROM

Watchdog

ASIC Hardware built-in

Link Mode

Modbus TCP, ASC, RTU

Power

Input Voltage

8-24 VDC@500mA

Physical Specifications

Dimensions

100 x 86 x 26 mm

Weight

0.45 kg

Humidity

5 to 95% (non-condensing)

Installation

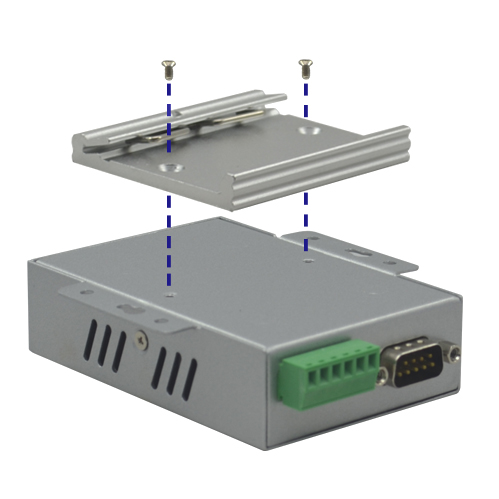

DIN-Rail Mounting

Operating temperature

-4° to158° F (-20° to 70° C)



                                                        (1)



                                                            (2)



                                                           (3)

Our products are widely used in electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective, timely and thoughtful service. ATC-3001 Modbus Gateway is an industrial converter, RS-232 interface for each product line 600W, RS-422/485 1000W per line lightning surge protection products can be used in oil fields, dams, steel mills, iron plant, and some other places. . . Working environment up to -40 ℃ to 70 ℃.

ATC-1000 unit 1PCS
Documentation and software CD 1PCS
Power adapter (EU、SU、AU、CN)9v@1A 1PCS
ATC-1000Instructions Book 1PCS
Din Rail Mounting Bracket ( for choosing accessory)
