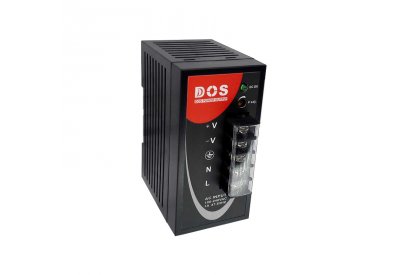

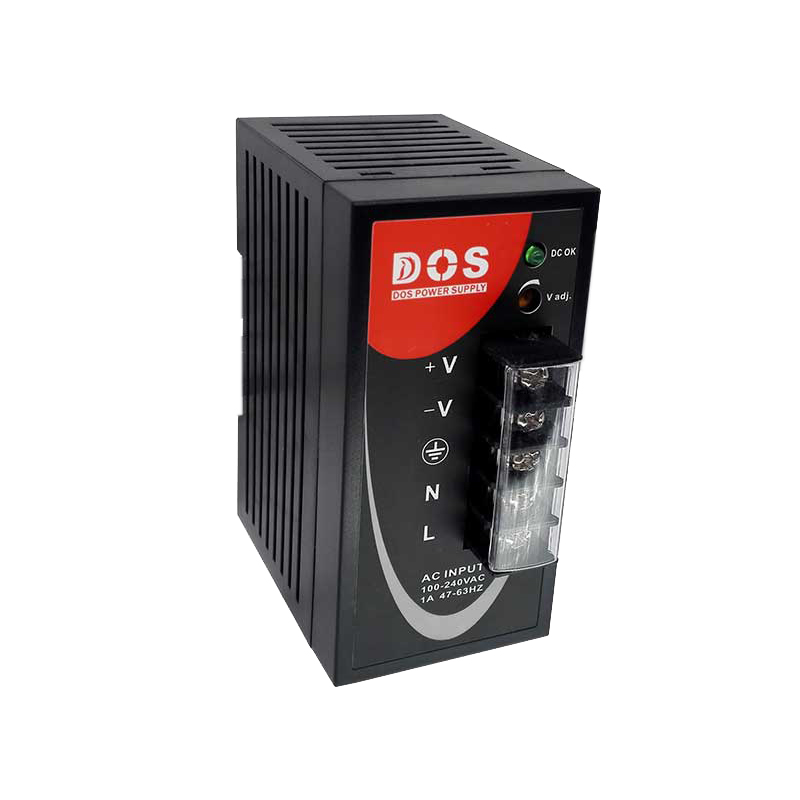

EDR-50-24P
Industrial power supply
Part number: EDR-50-24P
In Stock : Available
Product Features
- Stable performance and high reliability
- Short circuit protection, overload protection, over-voltage protection, etc
- Average trouble-free working time of 100,000 hours
- Standard 35mm rail mounting, efficient and fast
- Soft start current. Effectively reduce transient voltage shocks
- Use high temperature electrolytic capacitors to ensure system reliability
- 100% full load aging test
- Built-in EMI filter with minimal ripple and noise
|
Product number
|
EDR-50-24P
|
|
Input power
|
100~240VAC 50/60Hz
|
|
Input Current
|
Cold start 20A/110V, 40A/220V
|
|
Output voltage
|
24V(rated output voltage ±10% adjustable)
|
|
Maximum output current
|
2.1A
|
|
Overload protection
|
120%~150%, Automatic recovery
|
|
Over-voltage protection
|
30V(Automatic recovery beyond voltage maximum)
|
|
Short circuit protection
|
Automatic protection and recovery when the output is shorted
|
|
Working environment
|
-10~+50°C (100% load), humidity 5%~95%, no condensation
|
