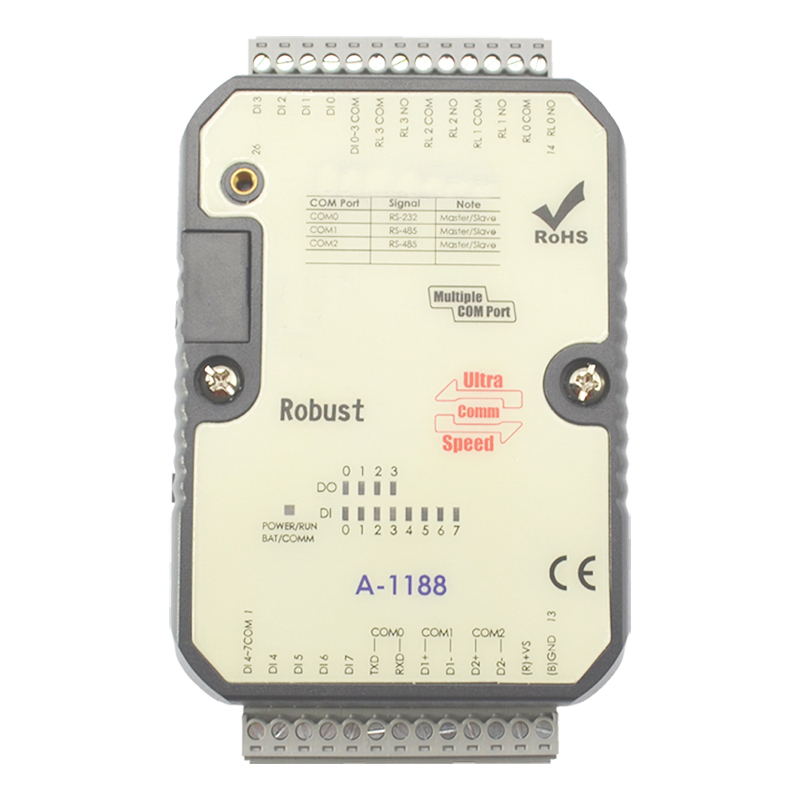

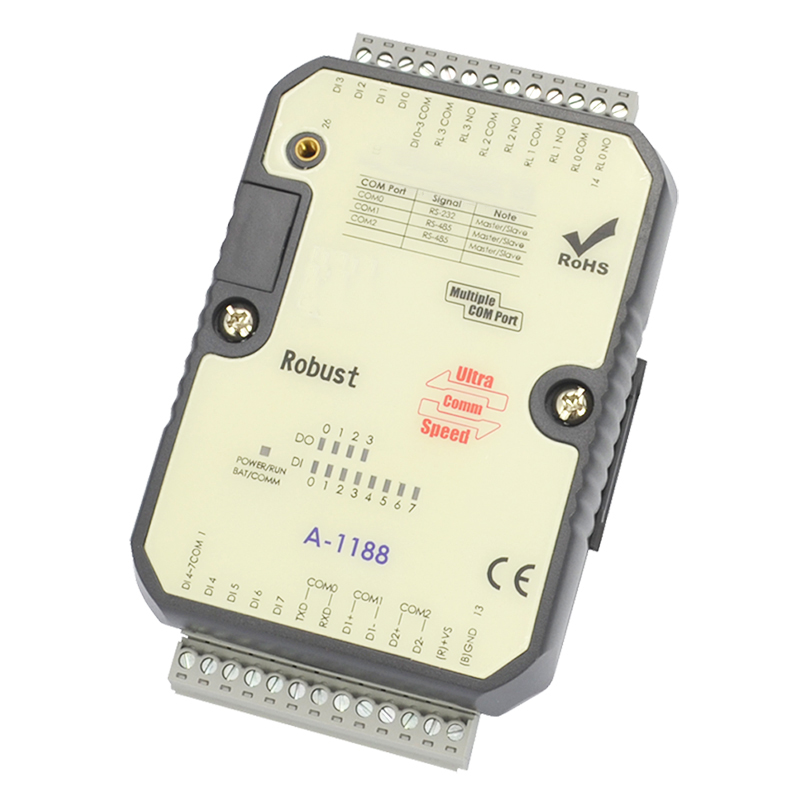

A-1188
Product Features
- FBD System
- Multiple communication ports
- Password protection, copy protection
- 36 integrated functions, pre-tested functions
- Linking of 1024 function block is possible
- Display of message texts
- Integrated data latch
- Support full Modbus protocol
- Free PC software“ Edit”+“ Utility”
|
Technical Specifications |
||||
|
Inputs |
8DI |
|||
|
Outputs |
4DO（Relay Output） |
|||
|
Interface Type |
RS-485*2，RS-232 |
|||
|
Support Protocols |
ModBus RTU / ModBus ASCII |
|||
|
Data Rate |
1200bps ~ 115200bps |
|||
|
Data Bit |
8 bits |
|||
|
Parity |
Odd, Even, None |
|||
|
Stop Bits |
1,2 bits |
|||
|
Isolation Voltage |
5000 VDC |
|||
|
Integrated time switches/reserve power |
Yes / > 2 years |
|||
|
Linking of functions |
1024(Max) |
|||
|
Intput Rating |
Logic Level 0 |
+1 VDC (Max) |
||
|
Logic Level 1 |
+3.5~30 VDC |
|||
|
High speed input |
DI0~DI3 (15KHZ) |
|||
|
Output Rating(Max) |
5 A for resistive load, 2 A for inductive load |
|||
|
Output Frequency |
30Hz（relay output） |
|||
|
Software |
||||
|
Configure Options |
Utility / Editor |
|||
|
OS support |
Windows XP/2000/2003/Vista/7 |
|||
|
LED Indicators |
POWER/RUN BAT/COMM |
Red/Green/Green |
||
|
Input/Output |
Red |
|||
|
Power Supply |
10~30VDC |
|||
|
Power Consumption |
Nearly 24VDC 2.28W |
|||
|
Physical Characteristics |
||||
|
Installation |
DIN-Rail Mounting |
|||
|
Housing |
Plastic ABS |
|||
|
Weight |
0.2Kg |
|||
|
Dimensions |
118 × 76 × 40.7 mm |
|||
|
Operating Temperature |
-20 ~ 75°C |
|||
|
Storage Temperature |
-25 ~ 80°C |
|||
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
|||
|
Standards and Certifications |
||||
|
RoHS, CE |
||||
Application Diagram:
The product packing list
A - 1188 products
A - 1188 A product specification
