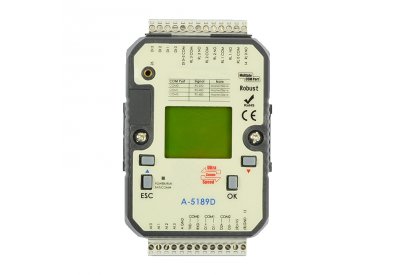

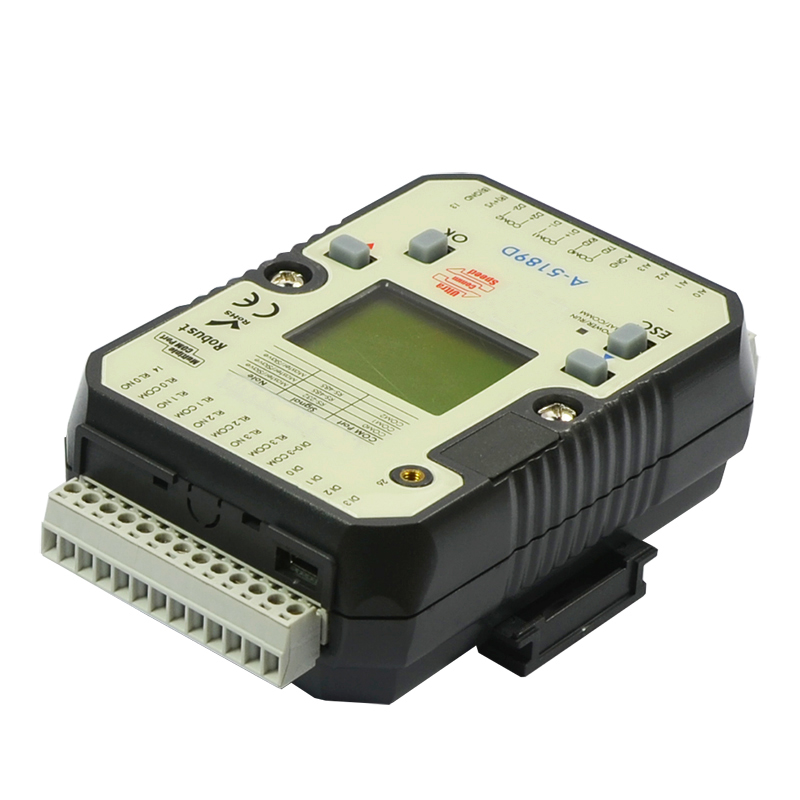

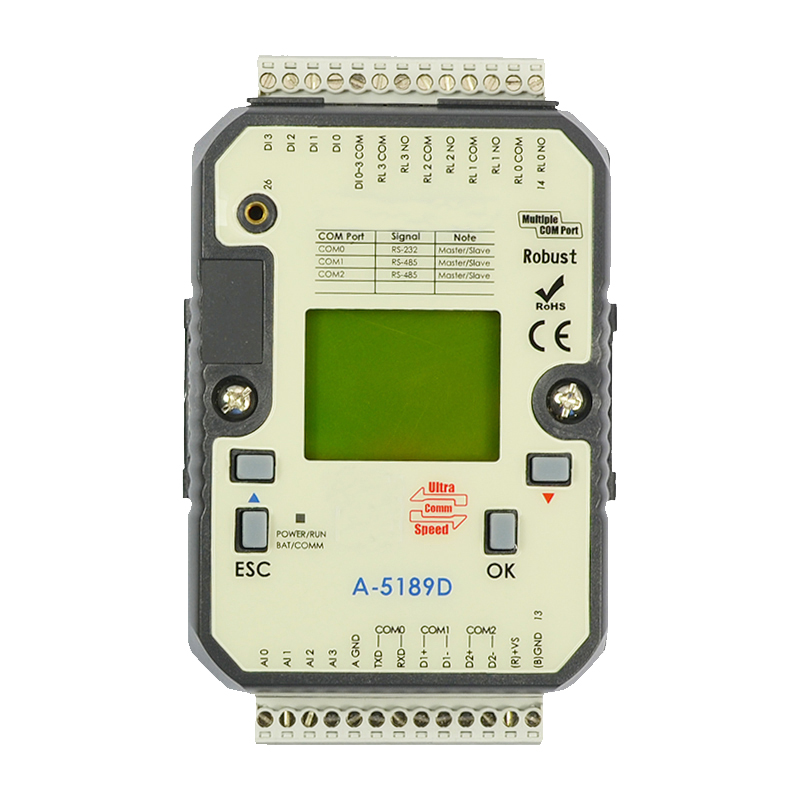

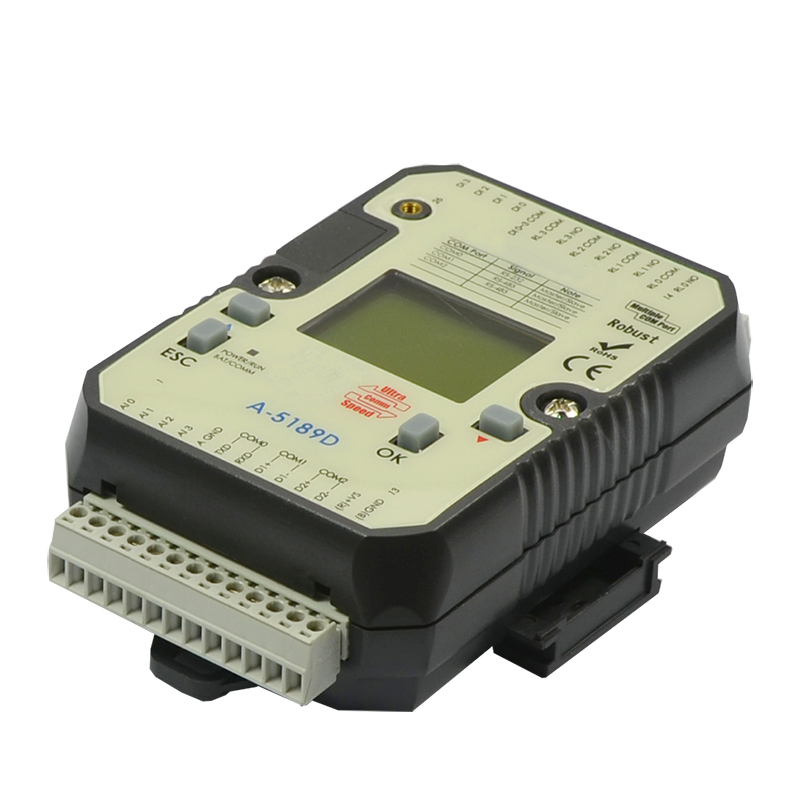

A-5189D
Product overview:
ATC launched the product performance, stability, are leading the global industry with the world, has created numerous records of [the world] first, the follow-up will be performed with innovative concept to serve all sorts of different areas of application.
Product features:
※ Creation of control programs in Function Block Diagram (FBD)or Ladder Diagram (LAD)
※ 4-Axis Synchronous Motion, 100 KHz PWM (Total 400KHz)
※ Able To Edit The Parameter Among The Controller Operation
※ Multiple AUTO-PI Synchronous Function
※ Multi-Lingual Display Menu
※ Enhance Password & Safety Function
※ Text Display Can Be Pre-Programmed in Two Languages
※ Built-in Standard High Frequency Counter (250KHz per Input, Total 1000KHz)
※ Built-in Standard Real Time Clock (RTC)
※ PC Program Can be Used For All A-61/52/62 Series
※ ATP2 Text Panel Can Plug & Play Directly
※ Built-in Standard RS-485 Port, Connect More Than 10000 IOs Via Remote IO Module
※ Memory Card Which Has Copy & Password Protection
※ Connect Encoder & Multi-Sensors Directly
※ Built-in Step Motor Driver, Connect Directly
※ Built-in Datalog Function, MicroSD Plug-in
※ Display Text Display Diversity Patterns, Scrolling Text, Bar Charts, Indicators ....
※ 104 FBD Integrated Functions, 97 LD Integrated Functions
※ Astronomical Clock Function
※ ATP2 Text Panel Built-in Function Key
※ Digital Oscilloscope Function, Real-Time Monitoring
※ High-Level Math Functions
※ Communication Protocol MODBUS RTU/ASCII & Multi Format
※ Block Name Define, Program Comment
※ Communication Baud Rate 921600 bps
※ Custom Truth Table, Without Logical Analysis
※ Multi Communication Parameter Function
※ Quick Calculation Of Nonlinear Equations
※ Random Generator Hardware
※ Free PC software“Edit＂+“Utility＂
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Independent Communication Port which can communicate with 255 units MODBUS devices synchronized
※ Built-in Current/Voltage/PT-100 Input + Current Output
|
Technical Specifications |
||||
|
Inputs |
4DI, 4AI(0~10V, 10bit) |
|||
|
Outputs |
4DO（Relay Output） |
|||
|
Interface Type |
RS-485*2，RS-232,Mini USB |
|||
|
Support Protocols |
ModBus RTU / ModBus ASCII |
|||
|
Data Rate |
1200bps ~ 115200bps |
|||
|
Data Bit |
8 bits |
|||
|
Parity |
Odd, Even, None |
|||
|
Stop Bits |
1,2 bits |
|||
|
Isolation Voltage |
5000 VDC |
|||
|
Integrated time switches/reserve power |
Yes / > 2 years |
|||
|
Linking of functions |
1024(Max) |
|||
|
Intput Rating |
Logic Level 0 |
+1 VDC (Max) |
||
|
Logic Level 1 |
+3.5~30 VDC |
|||
|
High speed input |
DI0~DI3 (250KHZ) |
|||
|
Output Rating(Max) |
5 A for resistive load, 2 A for inductive load |
|||
|
Output Frequency |
30Hz（relay output） |
|||
|
Software |
||||
|
Configure Options |
Utility / Editor |
|||
|
OS support |
Windows XP/2000/2003/Vista/7 |
|||
|
LED Indicators |
POWER/RUN BAT/COMM |
Red/Green/Green |
||
|
Input/Output |
Red |
|||
|
Power Supply |
10~30VDC |
|||
|
Power Consumption |
Nearly 24VDC 2.28W |
|||
|
Physical Characteristics |
||||
|
Installation |
DIN-Rail Mounting |
|||
|
Housing |
Plastic ABS |
|||
|
Weight |
0.2Kg |
|||
|
Dimensions |
118 × 76 × 40.7 mm |
|||
|
Operating Temperature |
-20 ~ 75°C |
|||
|
Storage Temperature |
-25 ~ 80°C |
|||
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
|||
|
Standards and Certifications |
||||
|
RoHS, CE |
||||
