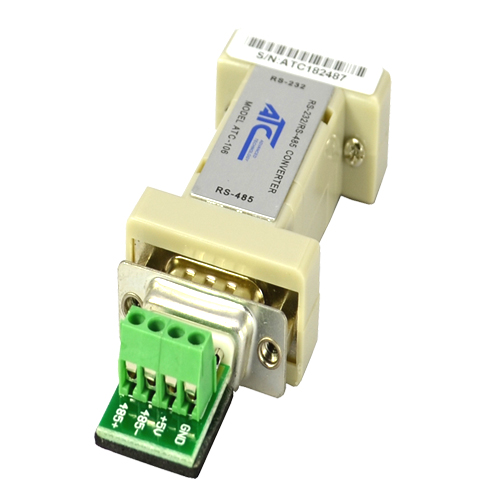

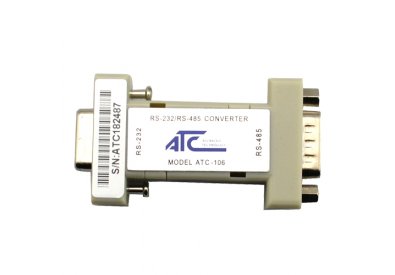

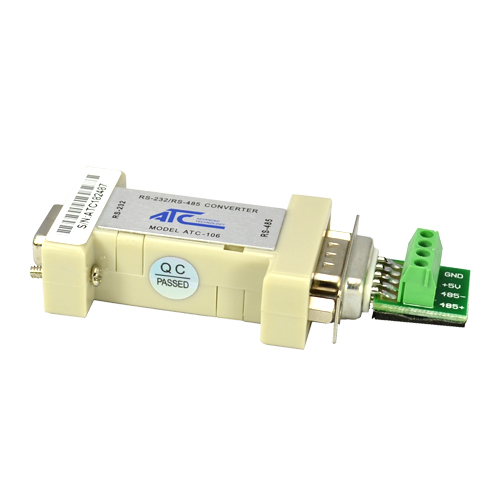

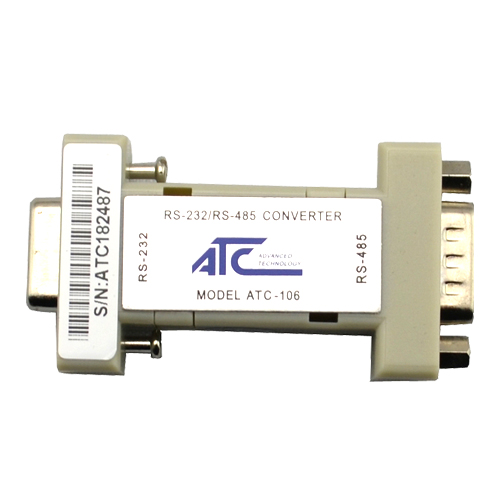

ATC-106
product overview
ATC - 106/106N interface converter can send the signal RS–232C serial port data (TD) and receive data (RD) into two line balance of the half-duplex RS - 485 signal. It is the best choice of a remote Control device or point to multipoint communication bus. The interface transition device don't need ac/dc converter, it can be directly from the Data within the RS-232 port transmitter data (TD), request to Send (RTS) or Data terminal ready (DTR) to obtain power. It also have the Automatic Send Data Line Control function. When to Send and receive Data, do not need the RTS control. So the power supply from serial port and Automatic flow Control makes you don't have to reset the hardware or install software. Improve the surge protection, can ensure the safety of the RS-485 network.
Application
- Point to point, point to multi-point communication
- Industrial distribution system, industrial control automation
- Road traffic control automation
- Closed circuit monitoring
- Security protection system
- Intelligent card, check on work attendance gate safety system
|
Communication Parameters |
|||
|
Interface |
Compatible with the EIA/TIA RS-232-C and RS-485 standard |
||
|
RS-232 |
TD, RD, GND |
||
|
RS-485 |
485+, 485-, GND |
||
|
Working Mode |
Point to point or point to multipoint, asynchronous half duplex(two line) |
||
|
Direction Control |
Automatic Send Data Line Control, automatic identification and control data transmission direction |
||
|
Baud Rate |
300-115.2kbps，automatic detection rate of serial port signals |
||
|
Transmission Distance |
RS-485 side 1200 meters (19.2 kbps), RS-232 side suggest no more than 10 meters |
||
|
Connector |
RS-232 |
DB-9 female |
|
|
RS-485/422 |
DB9 male or 6-pin Terminal block |
||
|
Load Capacity |
Maximum connections of 32 nodes（64,128,256 can be customized） |
||
|
Power Supply Parameters |
|||
|
Power Supply |
Without external power supply. Equipment from RS-232 port TXD, RTS, DTR signal for power supply. |
||
|
Power Consumption |
Static power consumption within 10 mA, dynamic average power consumption of 40 mA |
||
|
Physical Characteristics |
|||
|
Housing |
Plastic shell |
||
|
Weight |
0.1Kg |
||
|
Dimensions |
88mmx33mmx17mm |
||
|
Environmental Limits |
|||
|
Operating Temperature |
-20 ~ 70°C (-4 ~ 158°F) |
||
|
Storage Temperature |
-40 ~ 85°C (-40 ~ 176°F) |
||
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
||
|
Standards and Certifications |
|||
|
RoHS, CE, FCC
|
|||
The product application
Company products are widely used with the electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart CARDS, and other industries, production and sales of the products of the company, supporting complete, cost-effective, timely and thoughtful service, products are exported to Taiwan, Hong Kong, South Korea, Thailand, the United States, Poland, Italy, Spain, Egypt, Russia, Norway, Singapore, Malaysia, Indonesia, and other national regions, well received by clients at home and abroad.
Product connection instance
