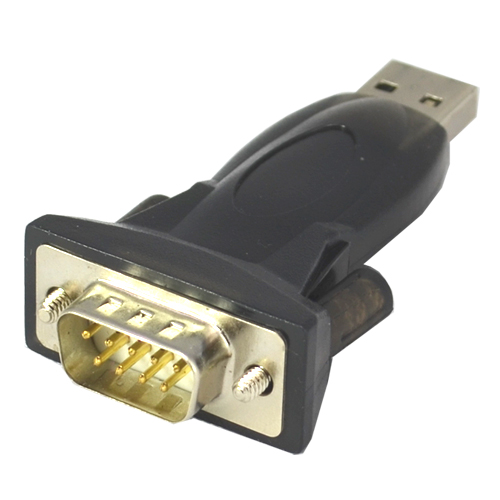

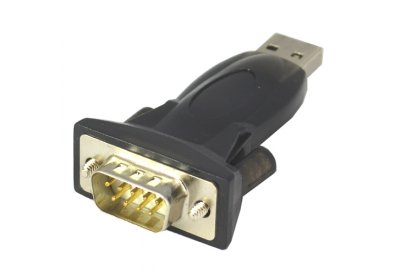

ATC-810A

USB To Single Port RS232 Converter

This device provides a simple and easy way to connect Universal Serial Bus (USB) and Serial port interface. With the advantage of USB port, users have the capability to utilize the peripheral with serial port interface in an easy to use environment such as plug and play & hot swap function. This adapter is designed for ideal connections to Cellular Phone, Digital Camera, Modems or ISDN terminal adapter with over 1Mbps data transfer rate.

The USB-high Speed Serial Converter and software drivers are capable of providing a no-firmware-change feature that enable USB interface to be transparent to serial port peripherals with minimum modifications.

USB Compliance: USB 1.0/1.1 compliant, USB 2.0 compatible
Connector USB type A
Speed 12 Mbps (Full-Speed USB)
Serial Interface
RS-232  full handshake line
Connectors DB9 male
Serial Line Protection
ESD Protection 15 KV embedded for handshake line.600W surge protect for TXD,RXD signal
Performance
Baudrate 50 bps to 460.8Kbps
Serial Communication Parameters
Data Bits  5, 6, 7, 8
Stop Bits 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
I/O Address  Assigned by BIOS
IRQ Assigned by BIOS
FIFO 64 bytes
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
Operating Systems

Windows (2000, XP x86/x64, 2003 x86/x64,Vista x86/x64), WinCE 6.0, Linux 2.6 x86/x64

Physical Characteristics
Housing ABS + PC
WeightProduct only 100g
Dimensions 60 x 35 x 17mm (The USB Cable length is 1000mm)
Environmental Limits
Operating Temperature:  0 to 55°C (32 to 131°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F)


ATC - 810A automatically detect and install local COM port, compatible with the existing serial communication program.ATC - 810A with a 384 - byte receive buffer and send buffer of 128 bytes.Interface static electricity and lightning surge protection.To connect mobile phone, digital camera, a modem and ISDN terminal adapter demand rate over 1 MBPS communications ideal choice.Widely used in industrial equipment, medical equipment, entrance guard, etc...

ATC-810AProducts 1PCS
ATC-810Auser's manual 1PCS
ATC-810A CD 1PCS
